100 Gallon Walker Stainless 316L Scrape Surface Sanitary Reactor

Add to Favorites

Description

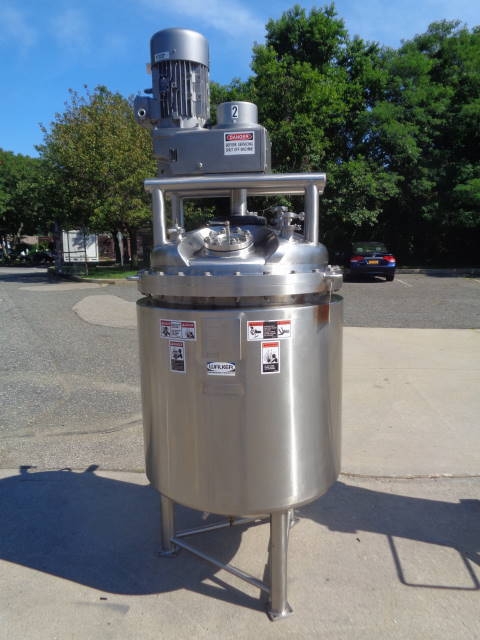

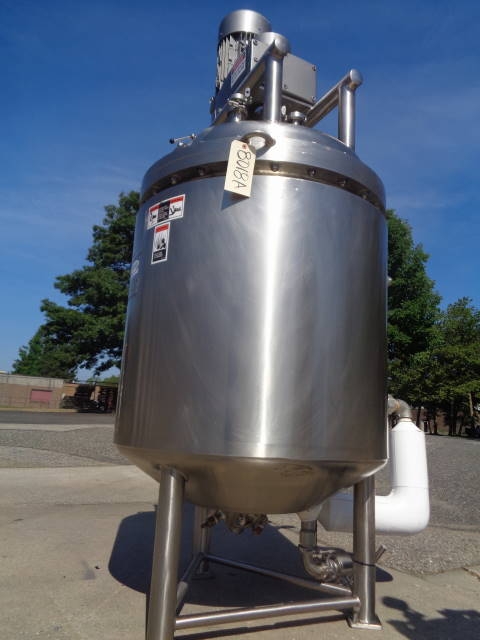

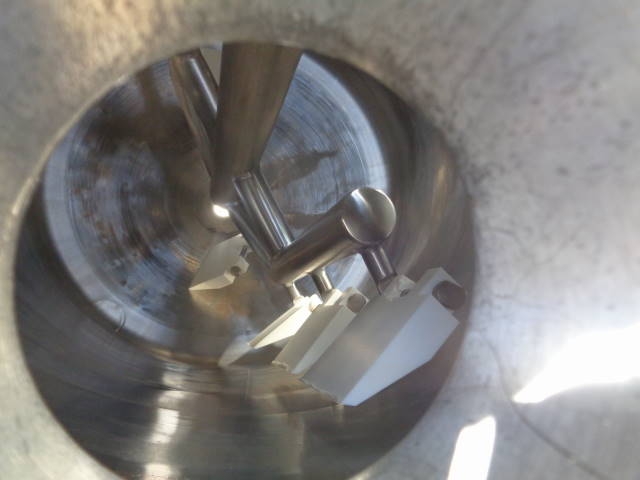

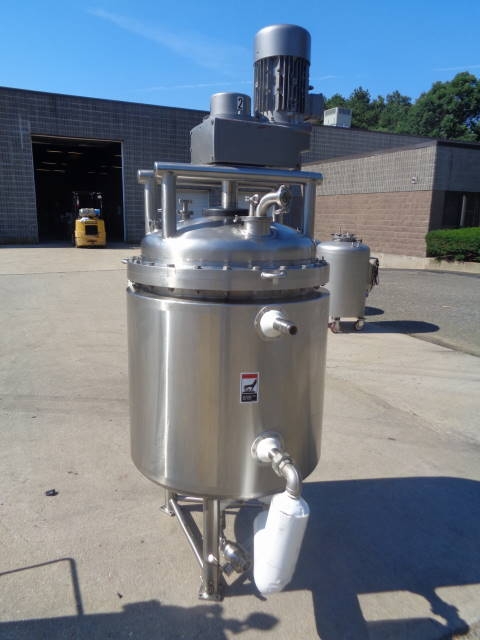

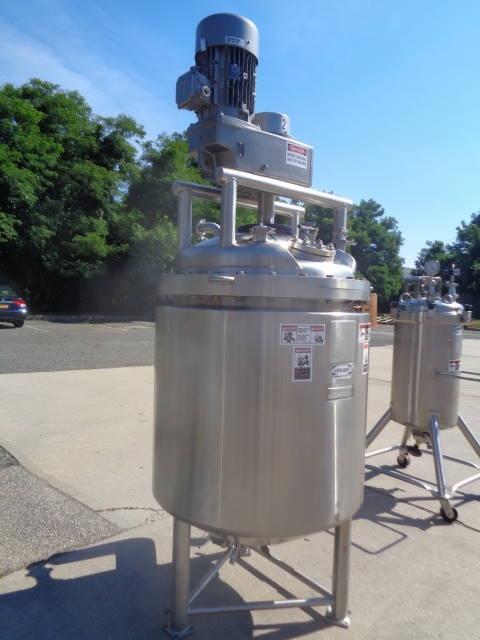

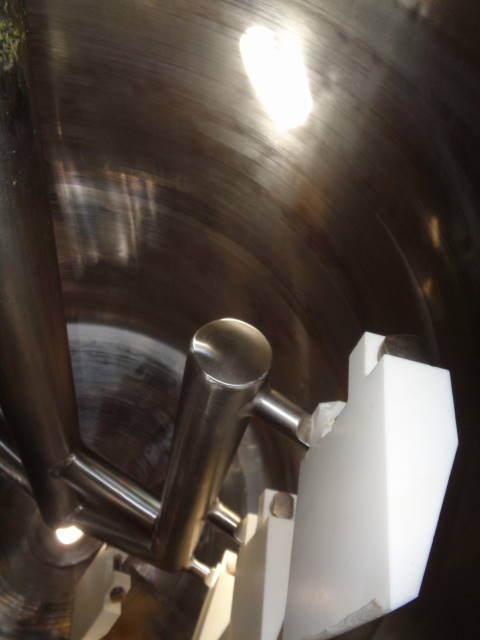

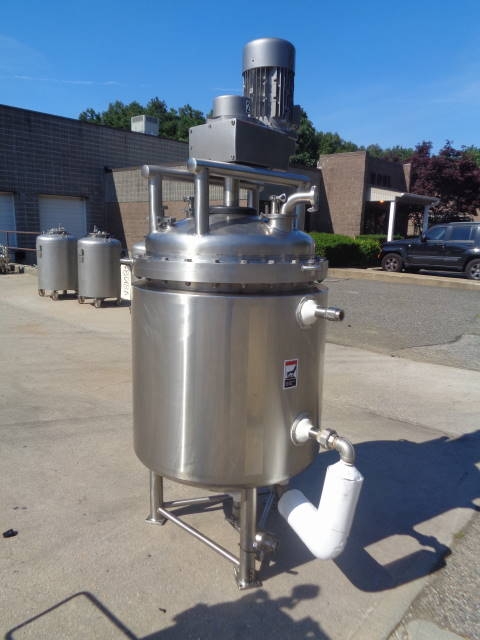

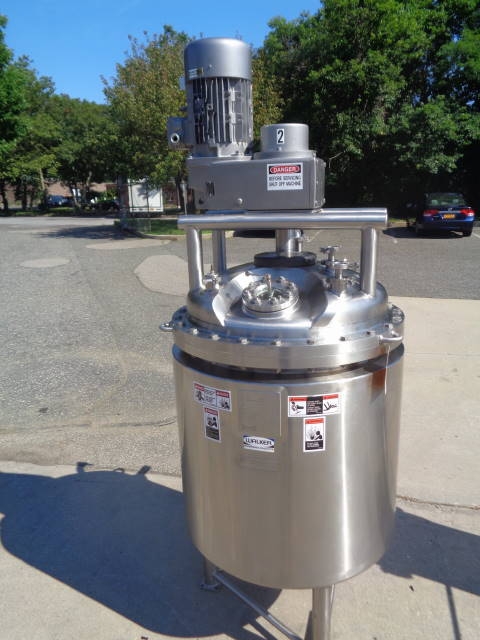

1-Used Walker Stainless Equipment Company 100 gallon (400 liter) Type 316L Stainless Steel Jacketed Sanitary Agitated Reactor, S/N WEP-113870.  Equipped with heavy duty scrape surface agitation driven by Nord 10 HP 3/60/230-460 volt gear motor.  With dome bolted top with assorted openings including approx. 4 in. diameter sight glass.  With dished bottom, Reactor has center bottom discharge and approx. 20 in. high stainless steel legs.  Vessel rated 75 psig @ 320 degrees F in the jacket and 60/-15 psig @ 212 degrees F internally.  National Board Number 7150, Code Stamped.  (Stock #8018A)

Specifications

  • Capacity/Model: 100 Gallon
  • Brand: WALKER STAINLESS
  • Stock #: 8018A
