1,000 Gallon Crepaco Jacketed Scraper Agitated Vessel with High Shear Mixing

Add to Favorites

Description

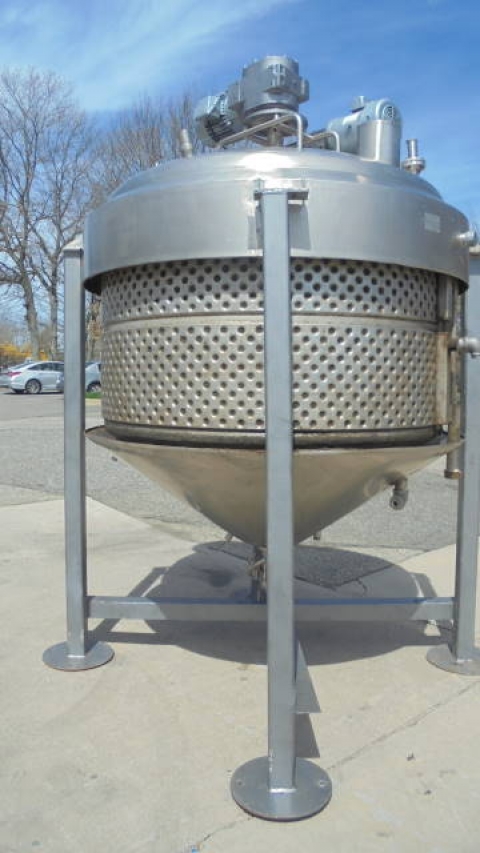

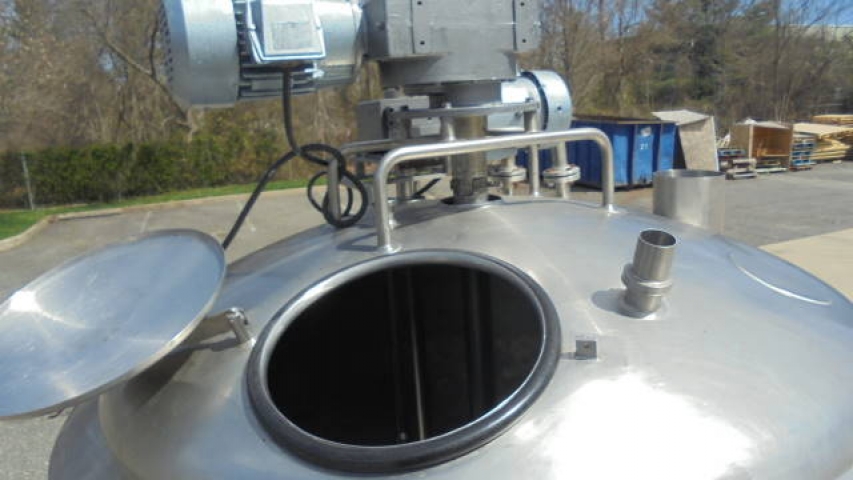

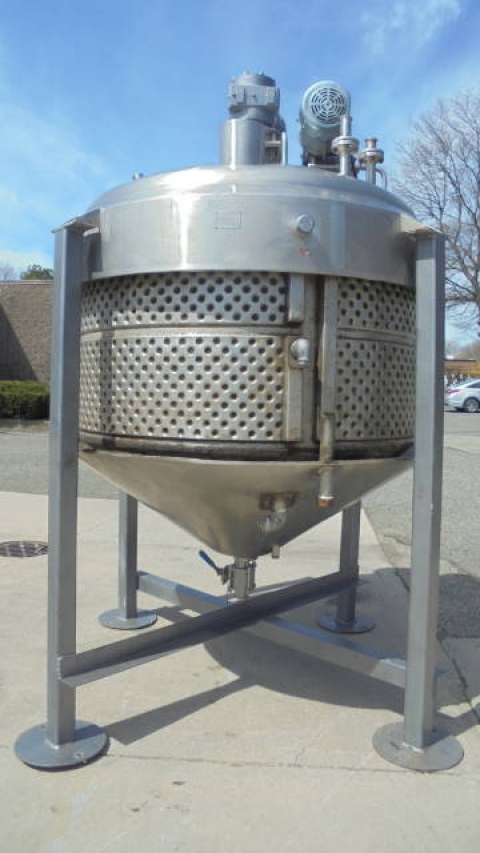

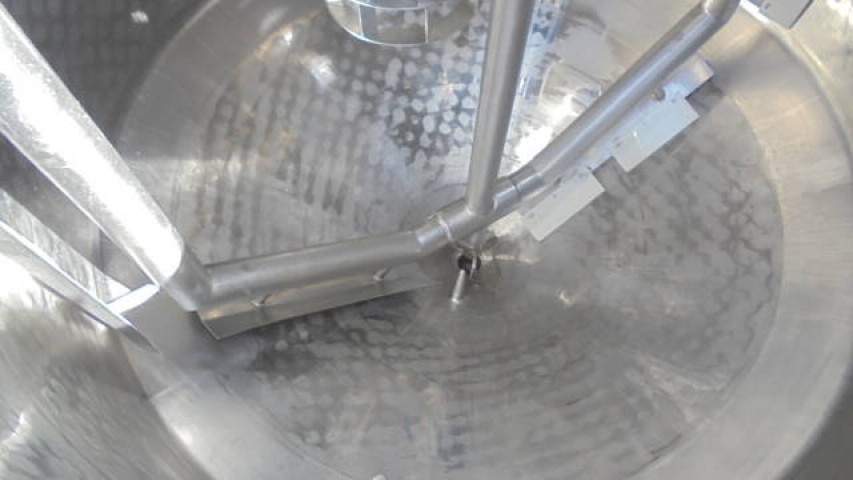

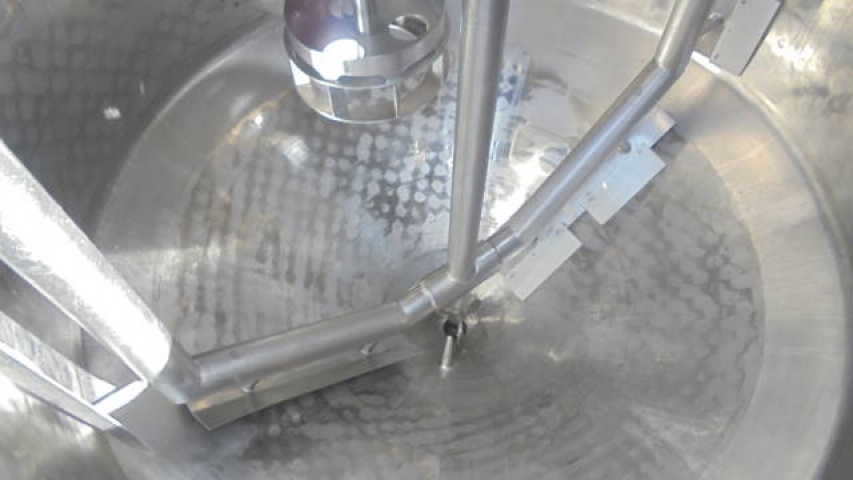

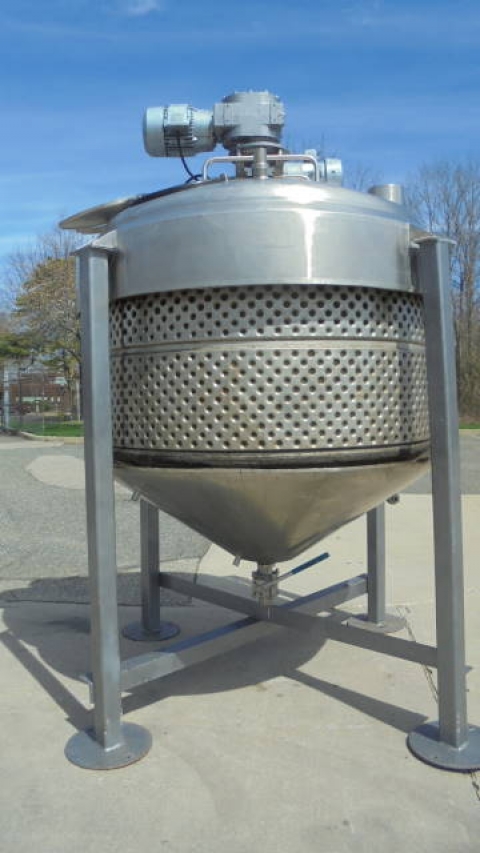

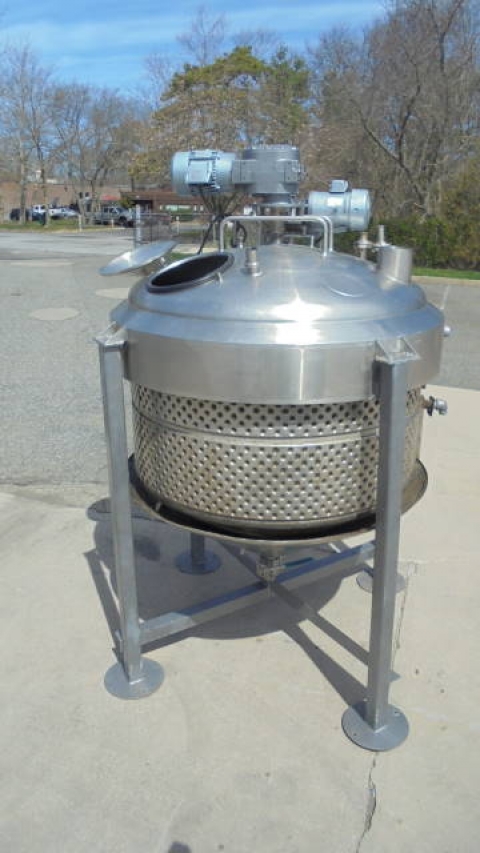

1-Used Crepaco Approx. 1,000 Gallon Stainless Steel Jacketed Dual Action Process Vessel, S/N B-2098.  Interior dimensions approx. 78 In. inside diameter X 42 In. on straight side, plus 19 In. deep cone bottom.  Vessel has dished top head with 18 In. off-center manway with lid and assorted smaller inlets. Dual action agitation consists of scraper agitator, as well as off-center high shear disperser head.  With cone bottom with approx. 3 In. diameter center bottom discharge, vessel has 5 HP 3/60/208-230/460 volt top mounted motor for high speed dispersion mixer, and 3 HP 3/60/230-460 volt motor for scraped surface agitation. (This vessel has leaks in dimple jacket and repair of the leaks would be the responsibility of the purchaser).  (Stock #8174D)

Specifications

  • Capacity/Model: 1,000 Gallon
  • Brand: CREPACO
  • Stock #: 8174D
