1,000 Gallon Stainless Steel Jacketed Processor, Sweep Agitation

Add to Favorites

Description

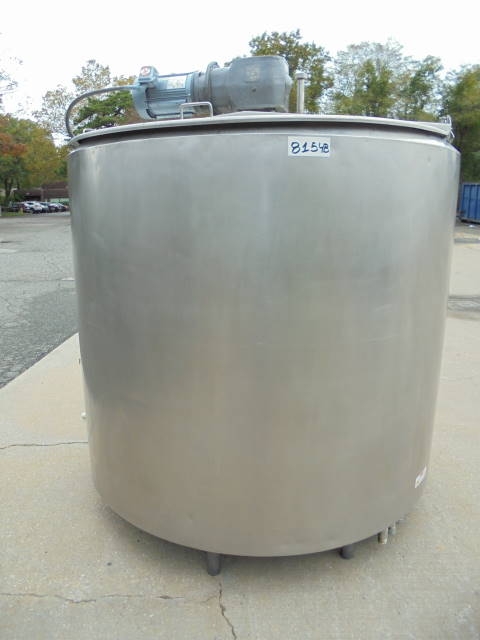

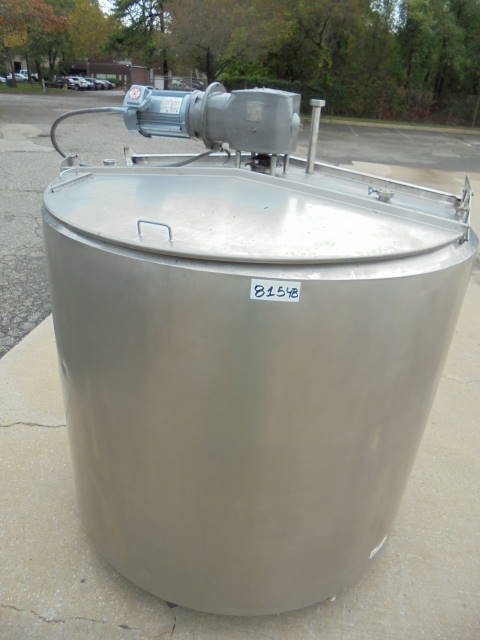

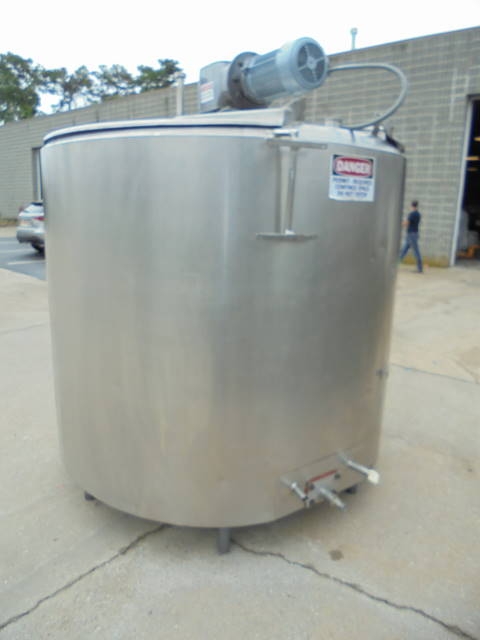

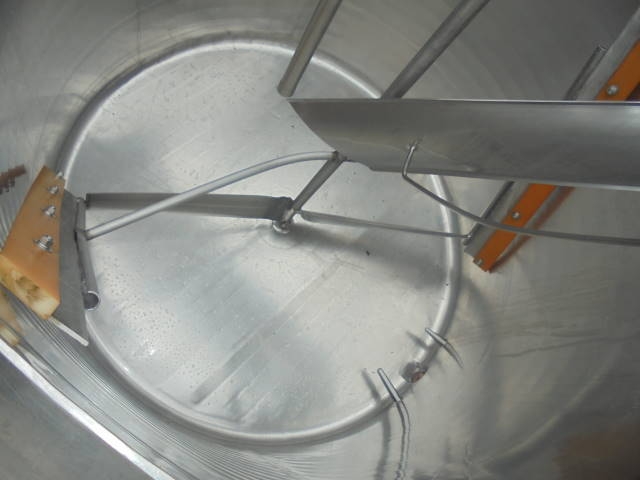

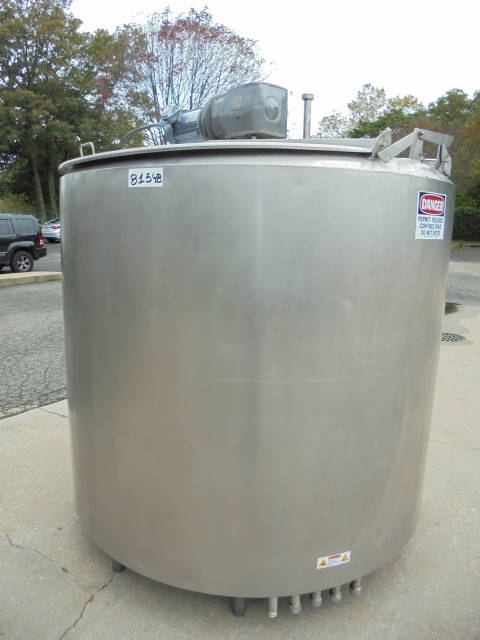

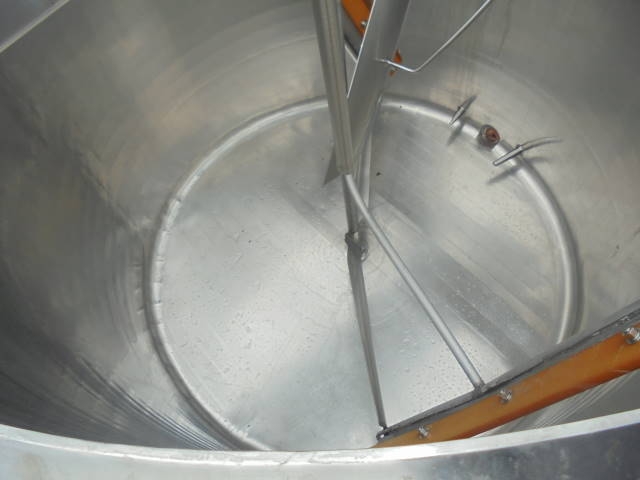

1-Used approx. 1,000 Gallon Stainless Steel Jacketed Agitated Processor.  This Jacketed Mixing Tank measures approx. 72 in. diameter X 64 in. straight side plus sloped bottom.  Half pipe jacket covers both sides and bottom head and there is outer insulation shroud on top of jacket.  Equipped with bottom sweep agitation and partial side scraper agitation driven by 5 HP 3/60/208-230-460 volt motor.  With hinged lids, Tank has internal stationery baffle and approx. 1-1/2 in. diameter discharge.  (Stock #8154B)

Specifications

  • Capacity/Model: 1,000 Gallon
  • Stock #: 8154B
