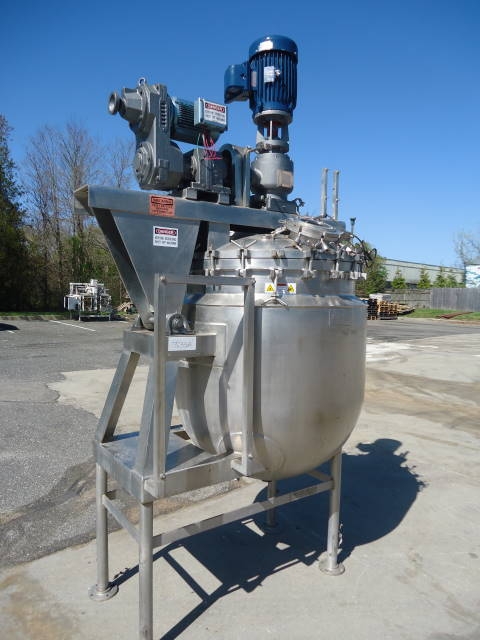

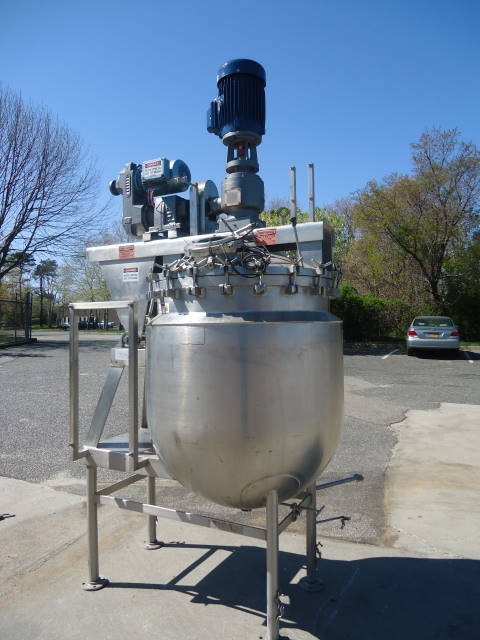

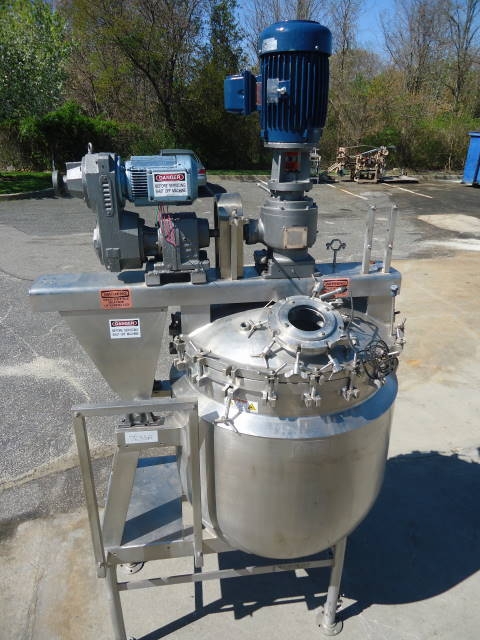

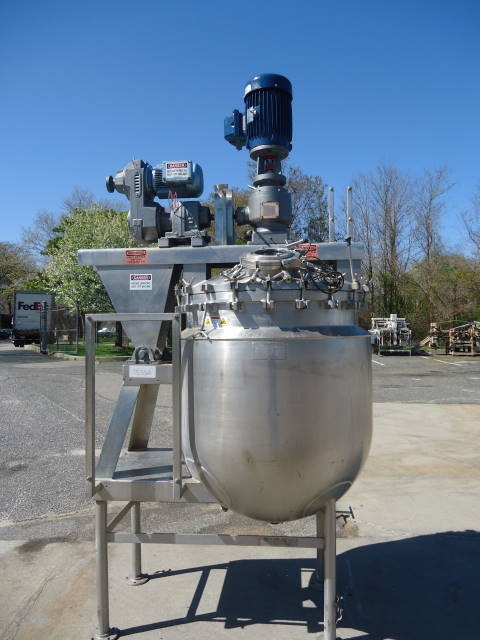

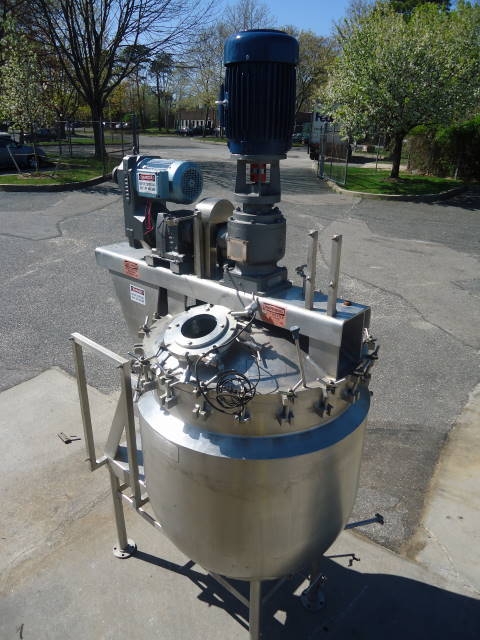

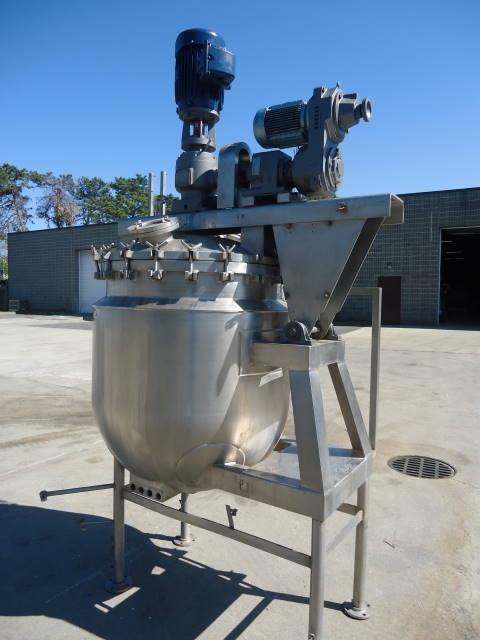

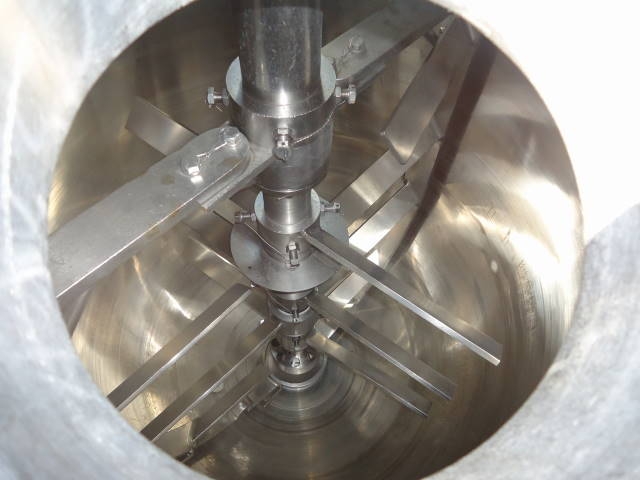

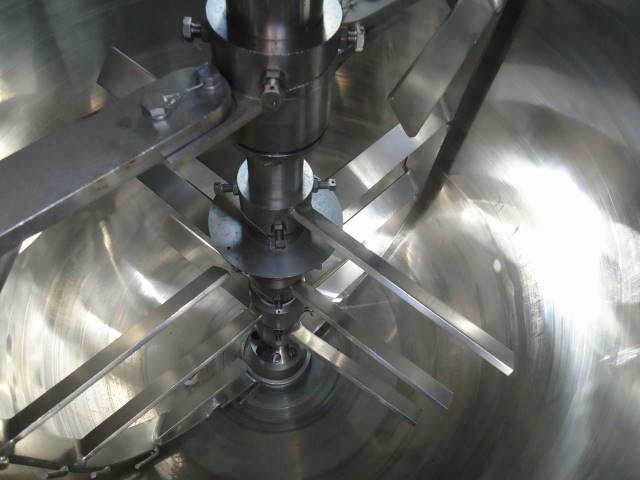

1-Used gifford wood 150 gallon type 316 stainless steel jacketed pressurized “agi-mixer” triple motion process vessel, s/n 40390-0840-80. Internal dimensions approx. 4o in. Diameter x 51 in. Deep. Vessel is jacketed for 100 psi and is rated for internal pressure of 20 psi @ 338 degrees f, national board #1456, code stamped. Equipped with double motion agitation driven by 3 hp 3/60/230-460 volt variable speed drive and high speed homogenizing head, vessel is on stainless steel legs and has approx. 2 in. Diameter center bottom outlet with hand operated ball valve. (stock #7633a)
(
