250 Gallon Lee Closed Jacketed Mix Kettle, 316 Stainless Steel

Add to Favorites

Description

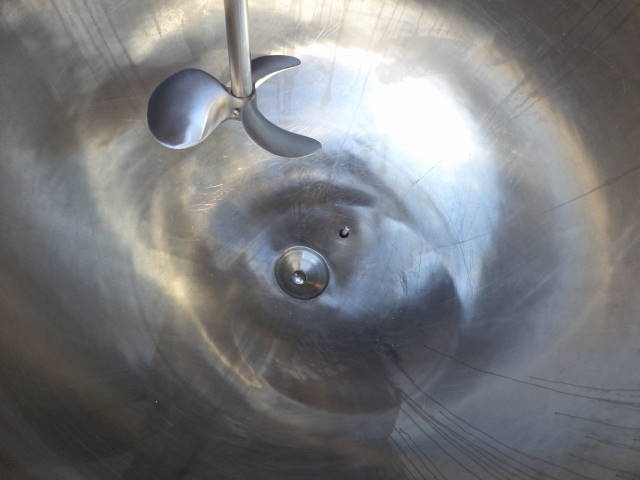

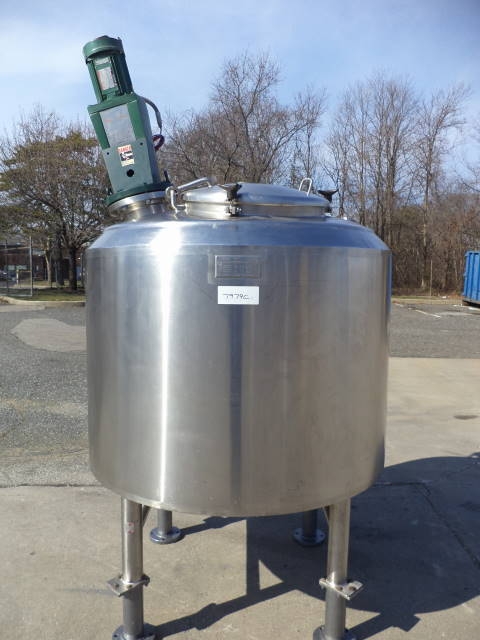

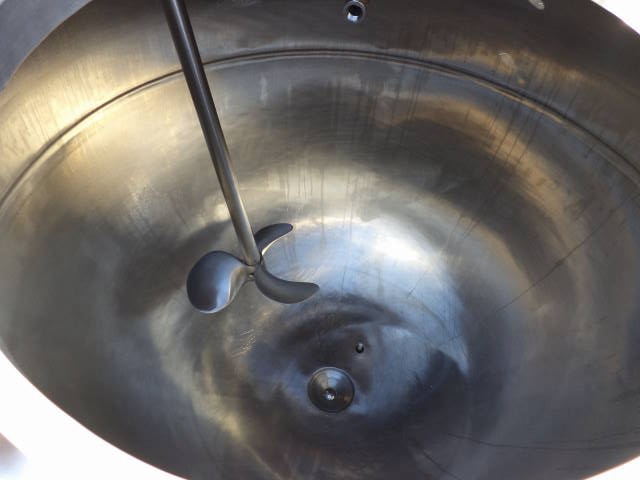

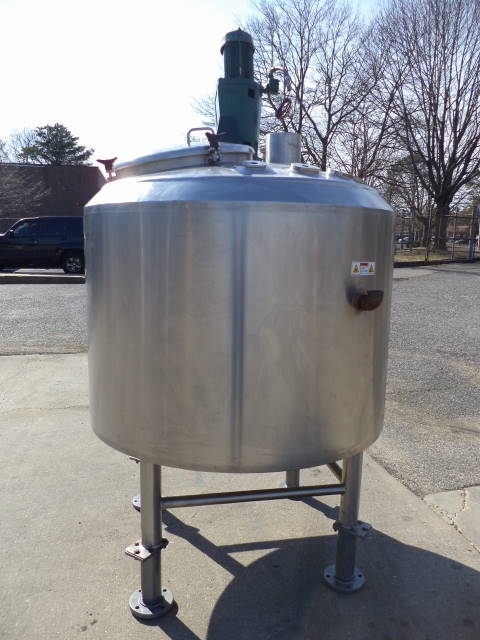

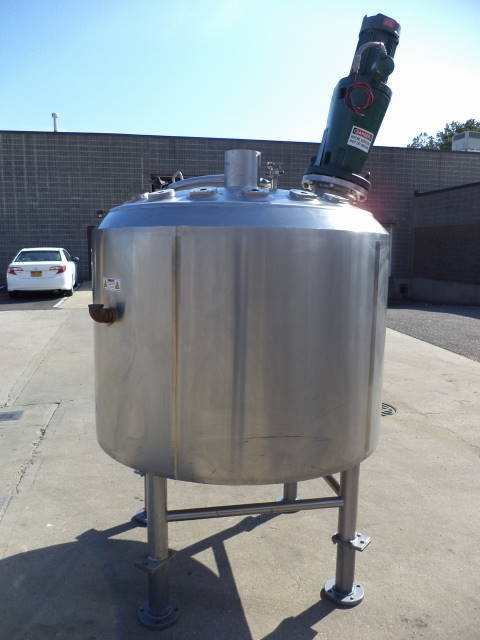

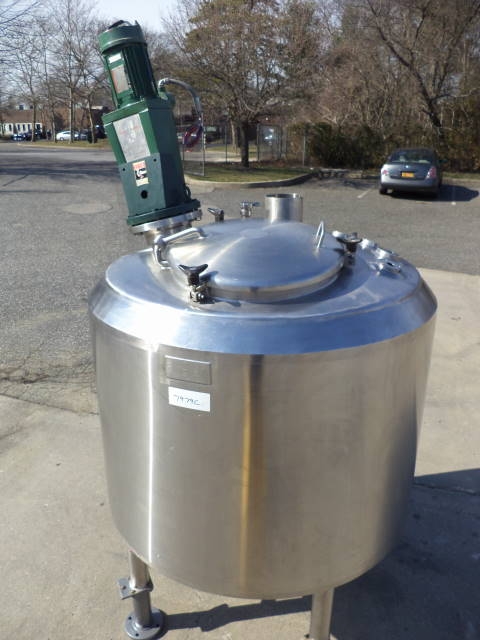

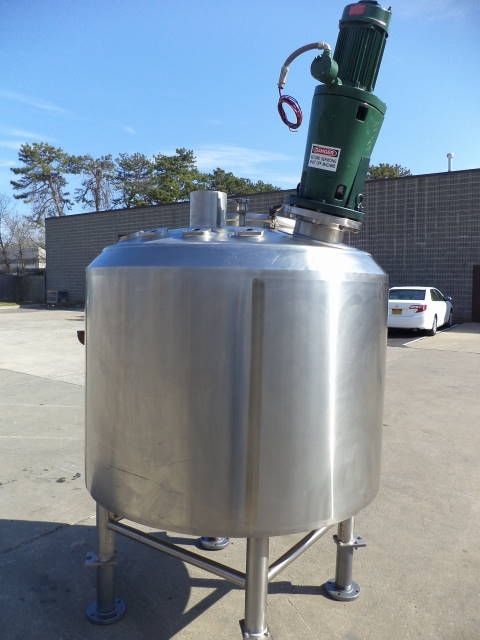

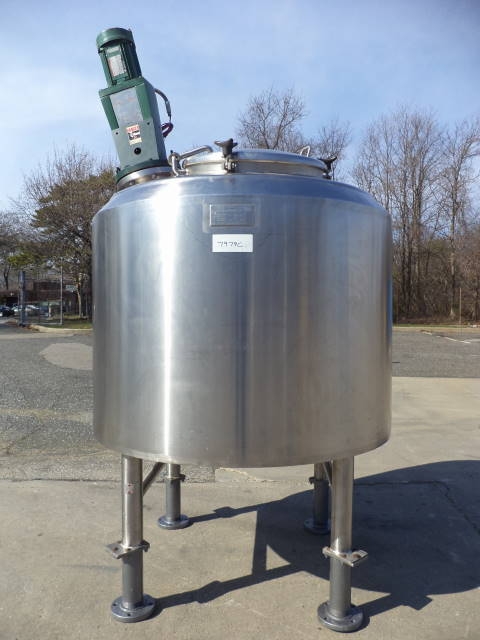

1-Used Lee 250 Gallon Type 316 Stainless Steel Jacketed Closed Mixing Kettle, S/N C5294A.  Dimensions approx. 54 in. diameter plus 40 in on the straight side plus dished top and head.  Kettle has hemispherical interior and is jacketed for 40 PSI @ 287 degrees F, National Board #7164, Code Stamped.  Equipped with top mounted angular Lightnin XJC-174 agitator driven with 16 in. diameter propeller and 1.74  HP 3/60/230-460 volt motor.  On approx. 28 in. high legs, Kettle has approx. 2 in. diameter center bottom outlet with automatic valve.  Top head has eight (8) additional assorted inlets and Thermowell on bottom.  With top off center manway, 24 in. diameter with gasketed hinged lid.  (Stock #7979C)

Specifications

  • Capacity/Model: 250 GALLON
  • Brand: LEE
  • Stock #: 7979C
