33 Gallon Greerco/Gifford Wood Triple Motion Vacuum Kettle

Description

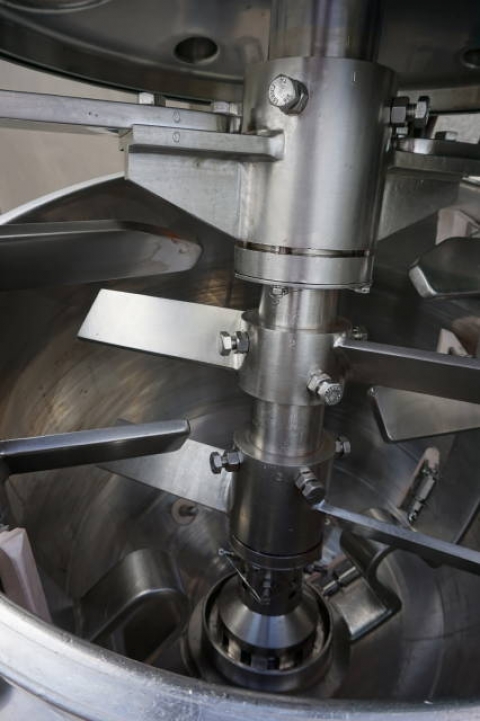

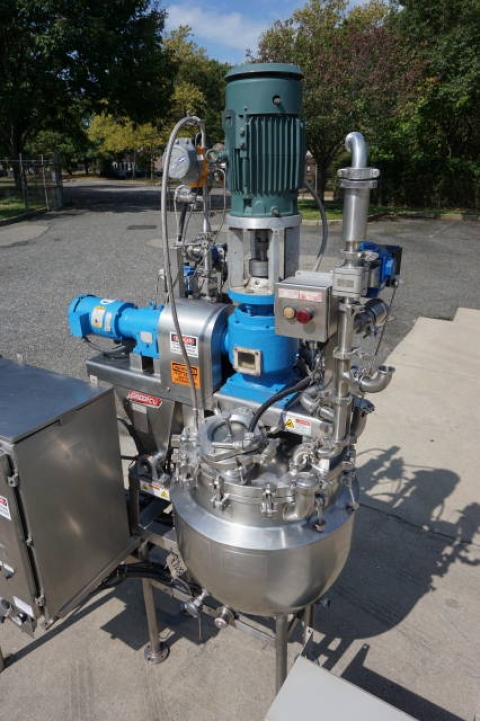

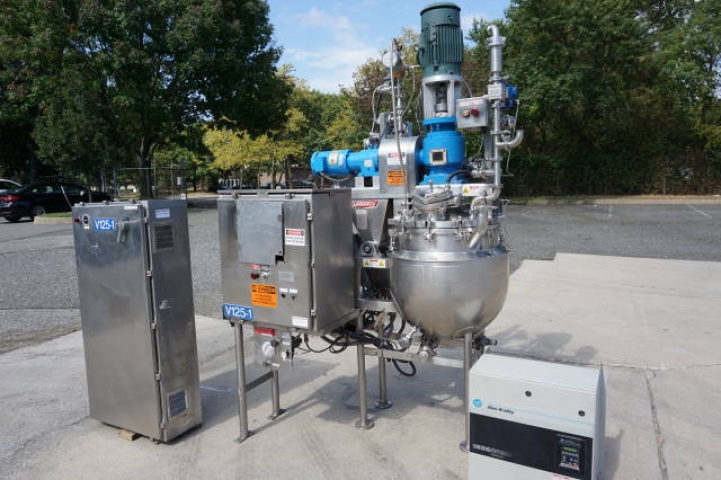

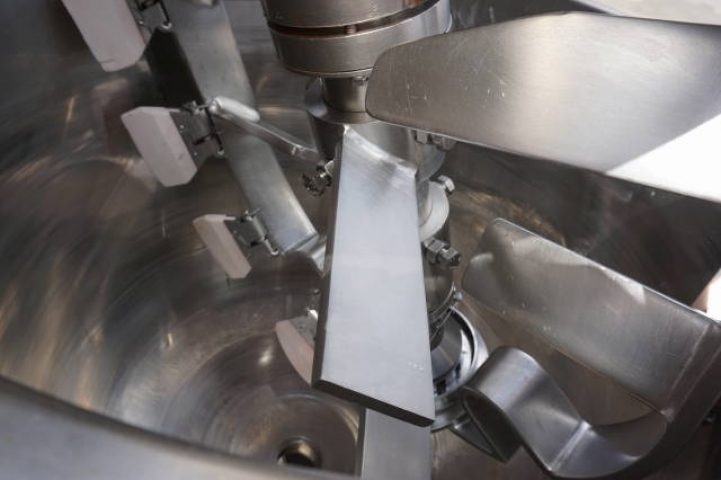

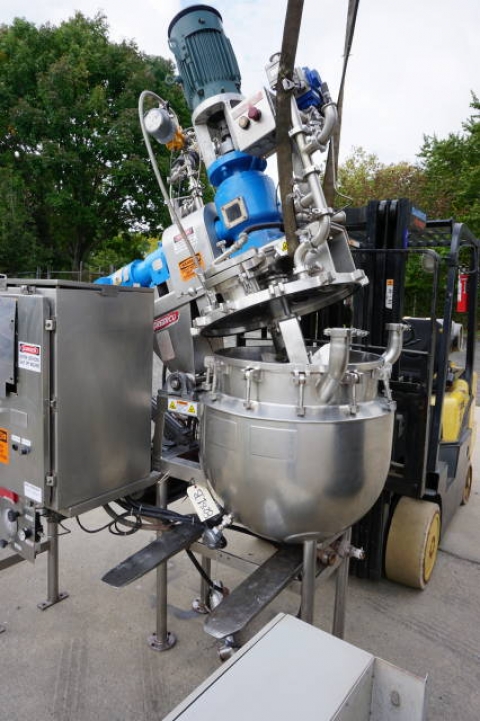

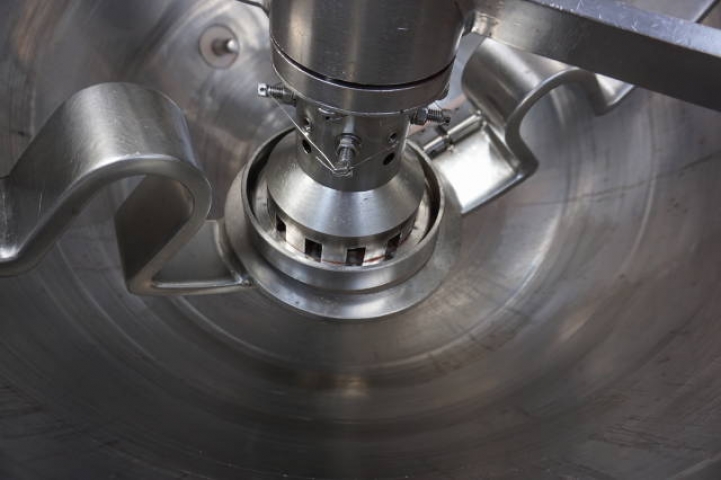

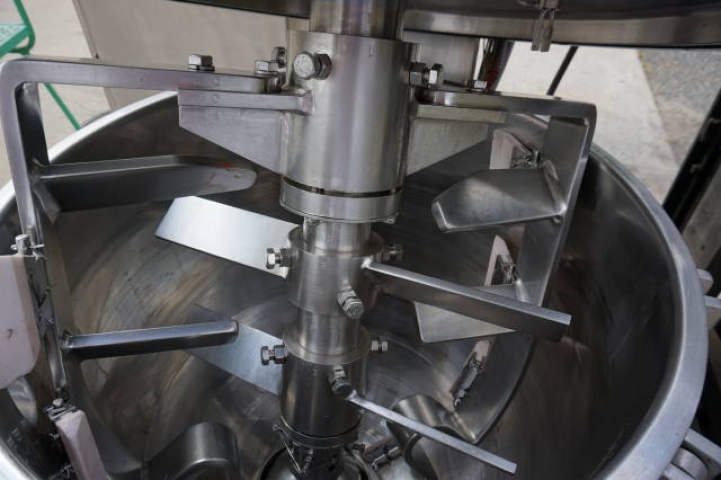

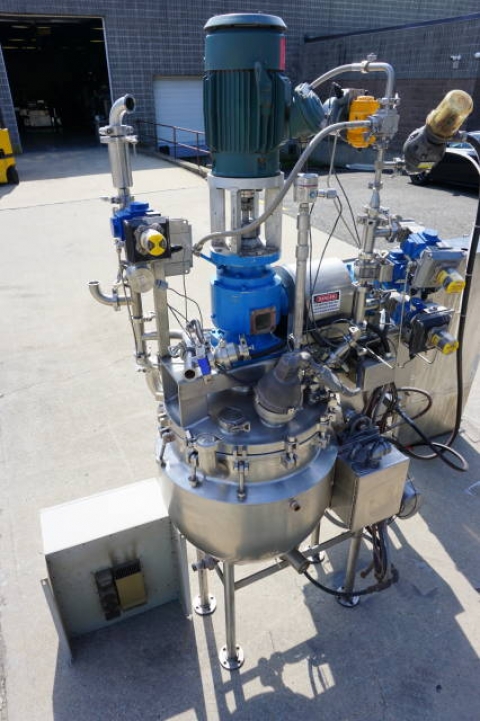

1- Gifford Wood Approx. 33 Gallon (125 liters) Working Capacity Stainless Steel “Agi-Mix” Jacketed Vacuum & Pressure Kettle/Reactor Vessel, Model 125L/V&P/AGI, S/N 92-390-3397.  Vessel jacketed for 40 psi @ 287 deg. F.  Rated internally 20 psi @ 338 deg. F and/or full vacuum, National Board # 2444, code stamped.  Kettle has a center bottom discharge outlet with flush type plug valve.  Equipped with double motion agitation driven by 1.5 HP 3/60/208-230/460 volt motor.   High speed homogenizing head has top driven by 5 HP 3 phase, 60 cycle, 230-460V explosion proof motor.  Equipped with motorized hydraulic unit and cylinder for automatic tilt out of agitator assembly.  Vessel on stainless steel legs.  Top lid has approx. 6 in. diameter inlet with hinged cover, off center light instrument, and miscellaneous tri-clamp fittings, and bottom entering thermowell.  Includes stainless steel electrical control cabinet, VFD, and operator station (missing HMI). (Stock #8281B)

Specifications

  • Capacity/Model: 33 Gallon
  • Brand: GREERCO
  • Stock #: 8281B
