750 Gallon Walker Jacketed Pressure Sanitary Reactor, 316L SS

Add to Favorites

Description

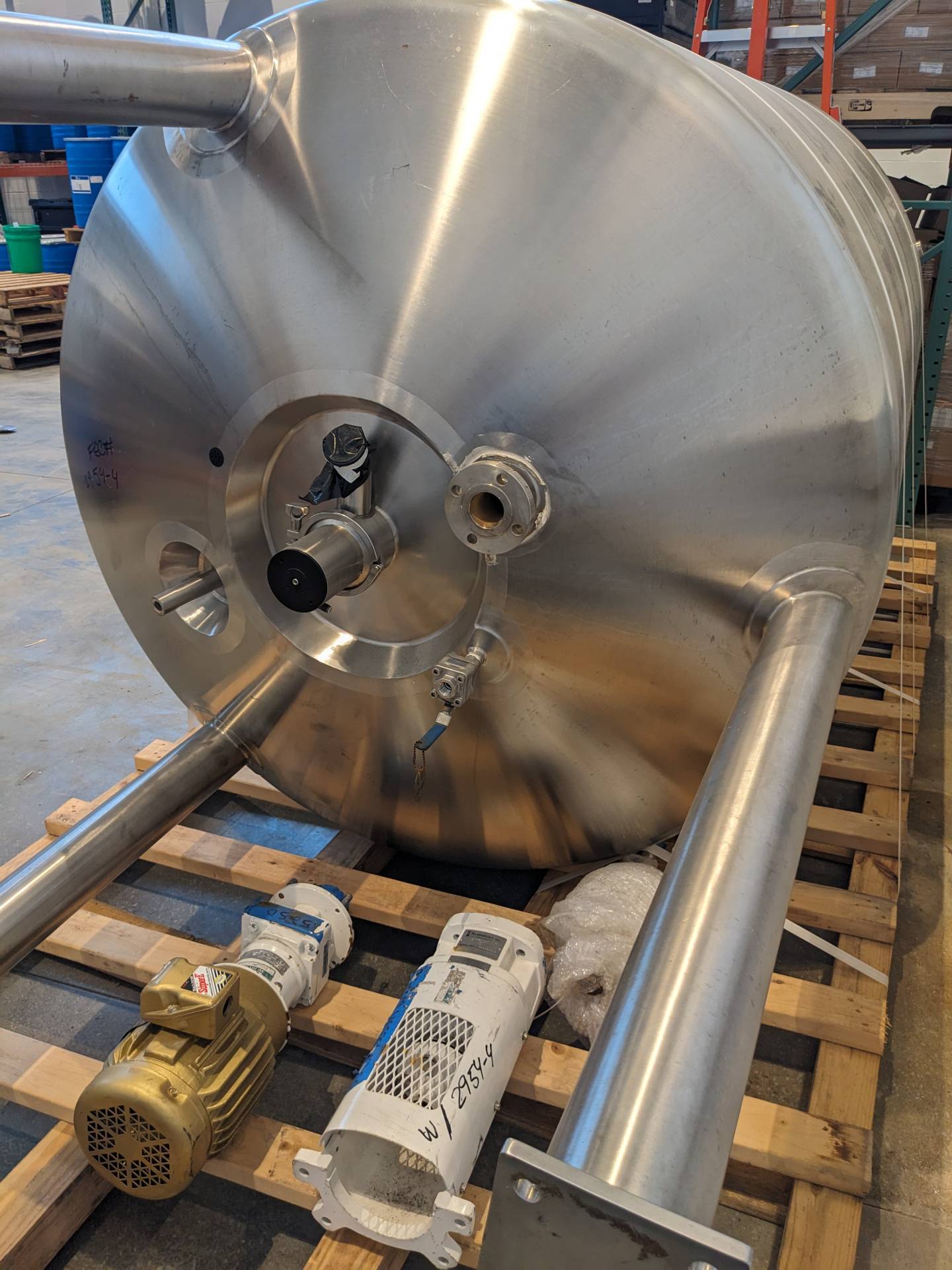

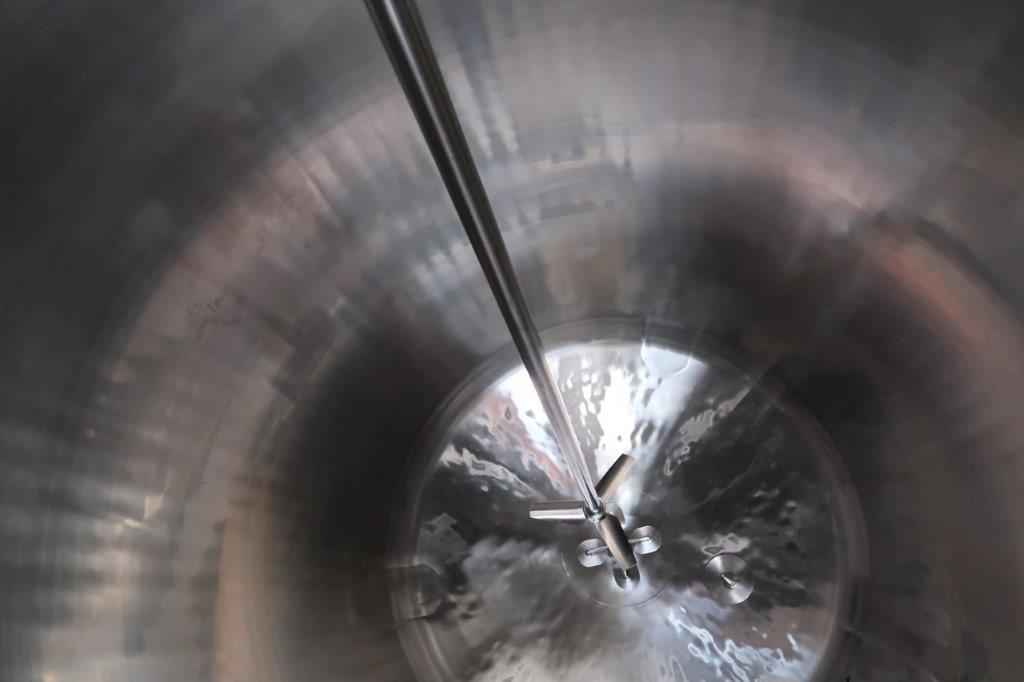

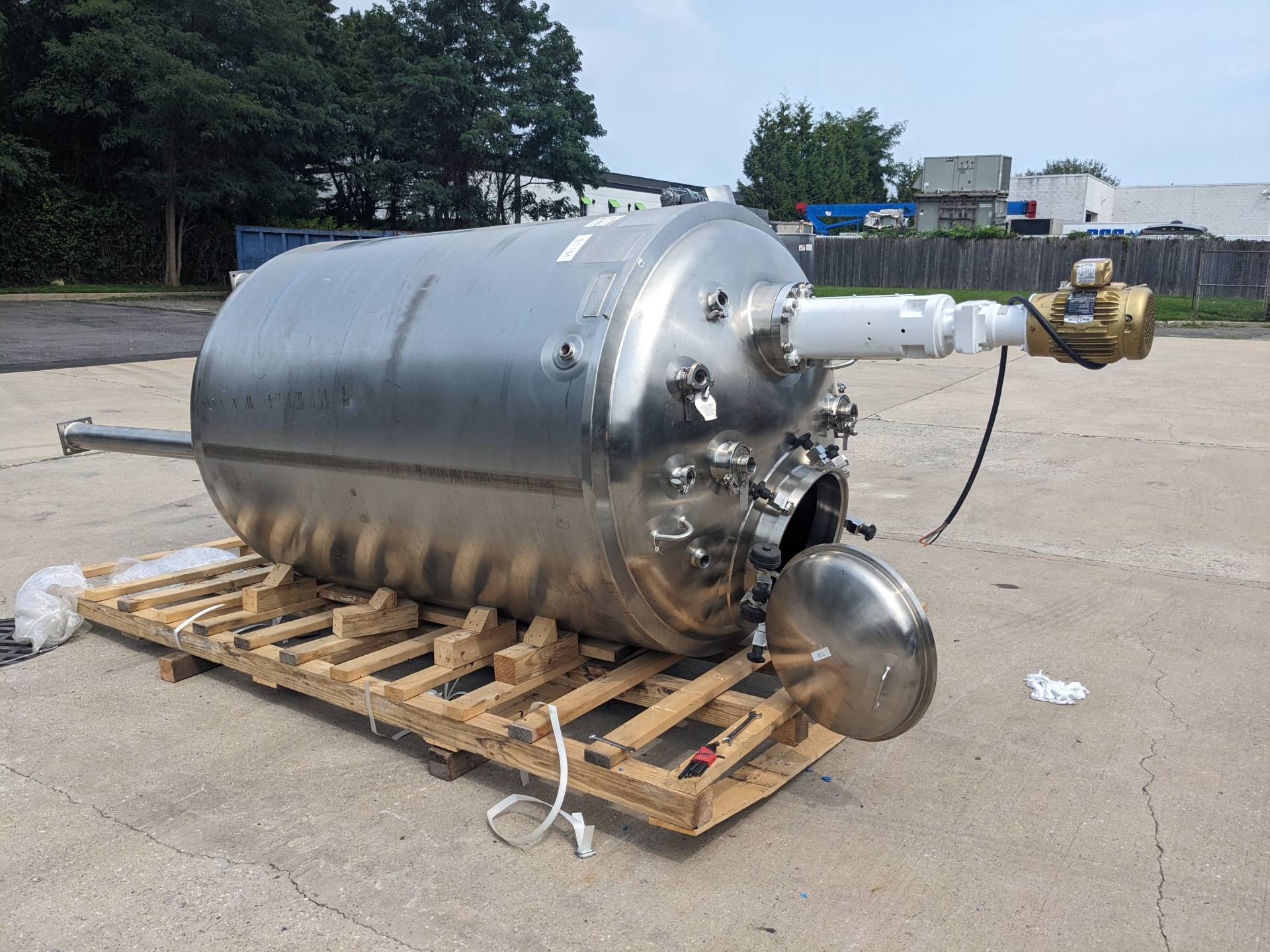

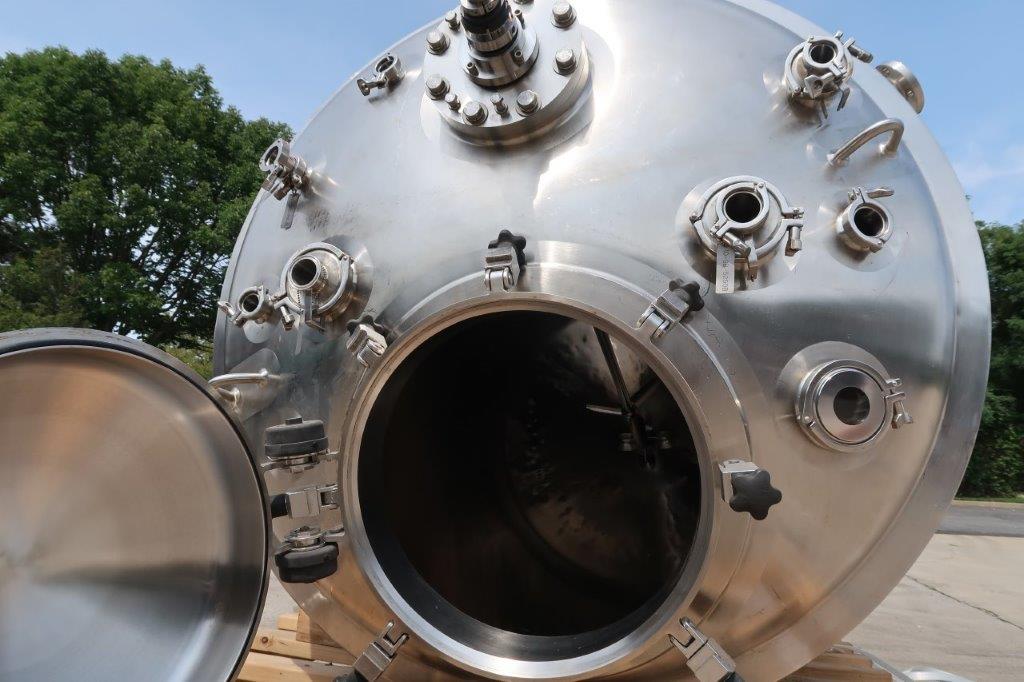

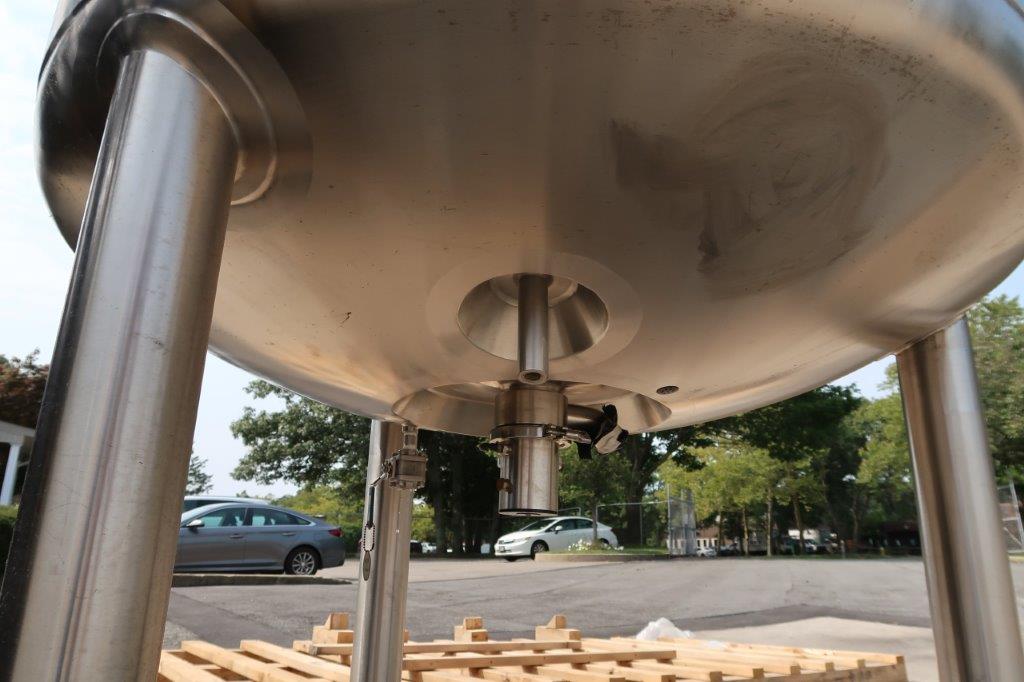

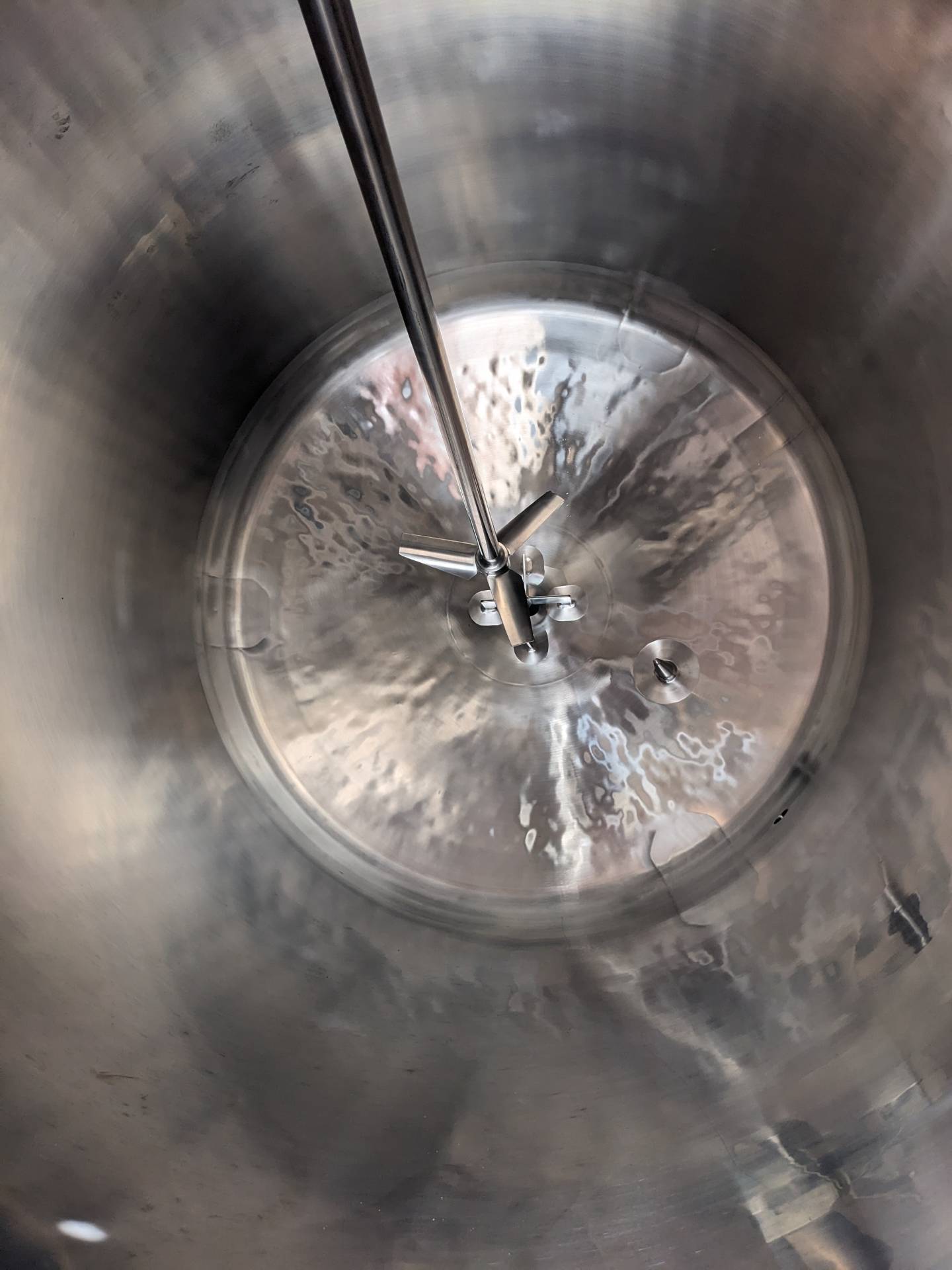

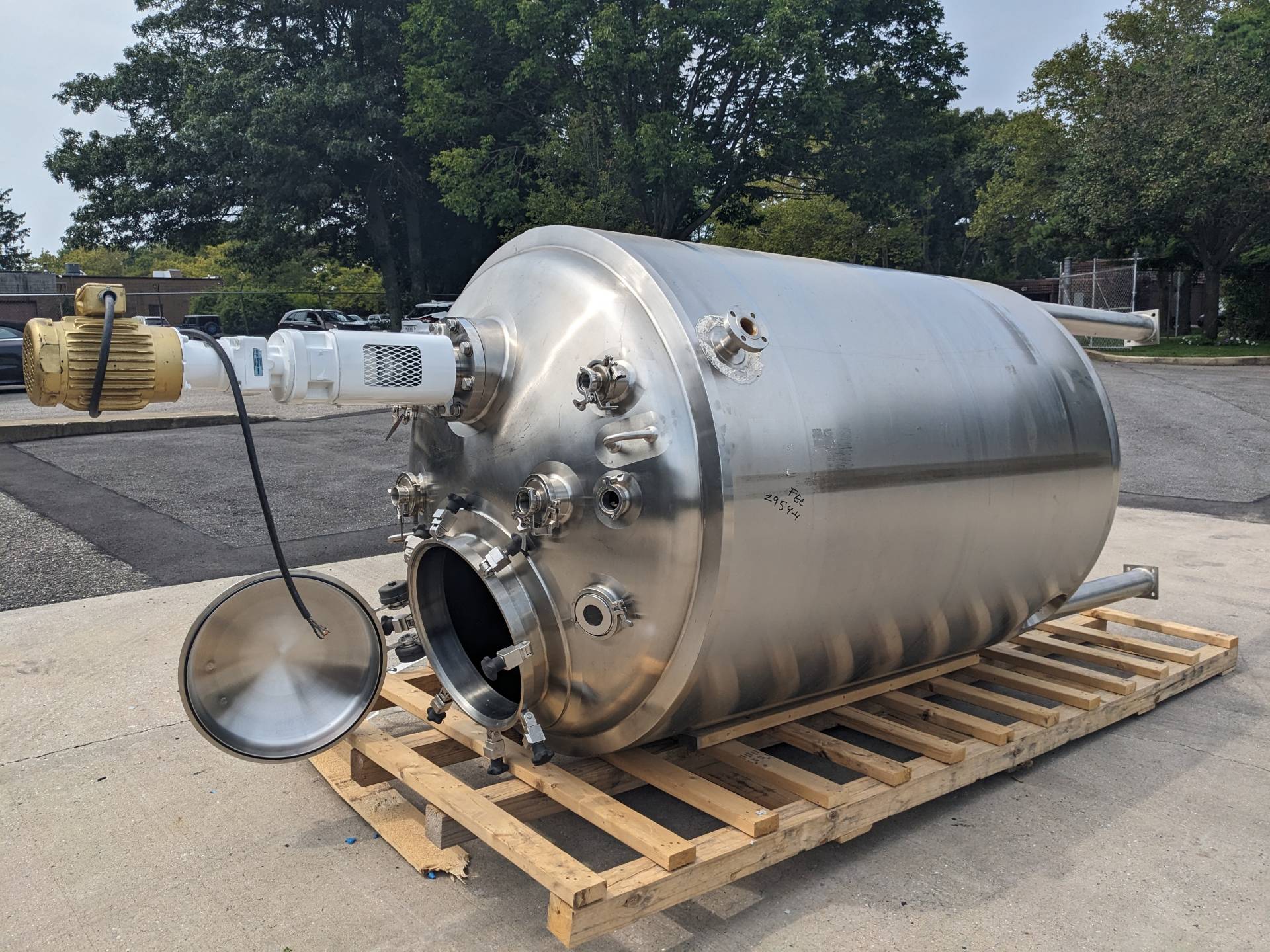

1-Used Walker Stainless 3,000 Liter (Approximately 750 Gallon) Type 316L Stainless Steel Sanitary Jacketed Pressurized Reactor, Model 10-VP-5250, Serial number SPG-37506. Interior dimensions 54 In. diameter X 76 In. long on straight side, plus dished top and bottom heads. Vessel is jacketed for 150 PSI/-15 @400 Deg. F., as well as 50 PSI /-15 @ 400 Deg. F. internal pressure, National Board number 5039, Code Stamped.  On 40 In. high stainless steel legs, vessel has approximately 10 assorted top openings, including 18 In. diameter top manway with dome lid and quick opening bolts. Equipped with Chemineer 2HP, 3/60/208-230/460 Volt mixer, Serial number 544651-19 and 93 In. long stainless steel shaft with 10 In. wide pitched blade. With approximately 3 In. diameter bottom center discharge.  Reactor last used at pharmaceutical incubator facility. (Stock #8778A)

Specifications

  • Brand: WALKER
  • Stock #: 8778A
