600 Gallon A & B Process Systems Scraper Agitated Jacketed Tank, 316L Stainless, Sanitary

Add to Favorites

Description

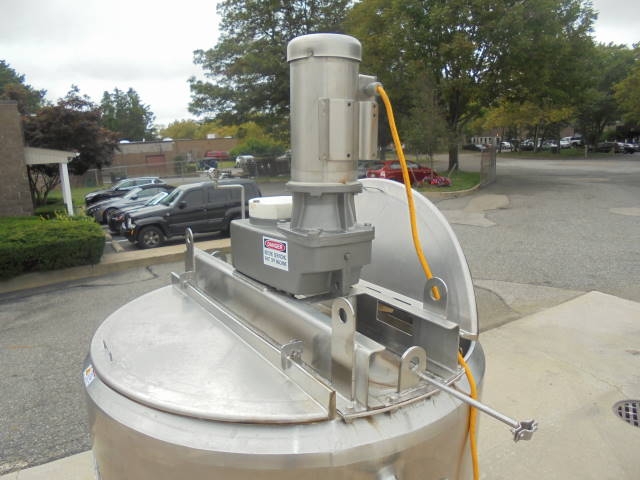

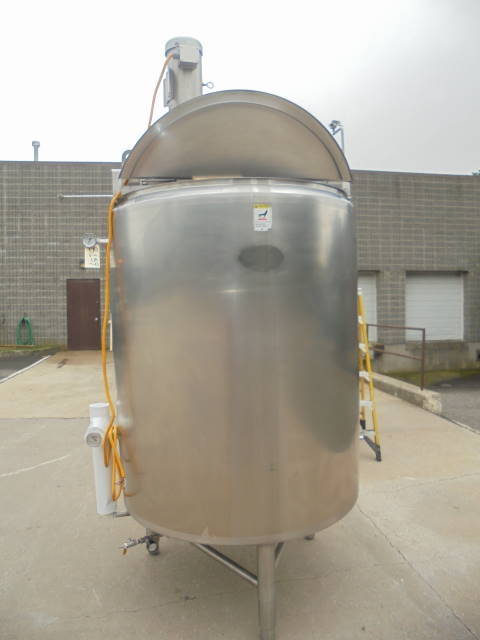

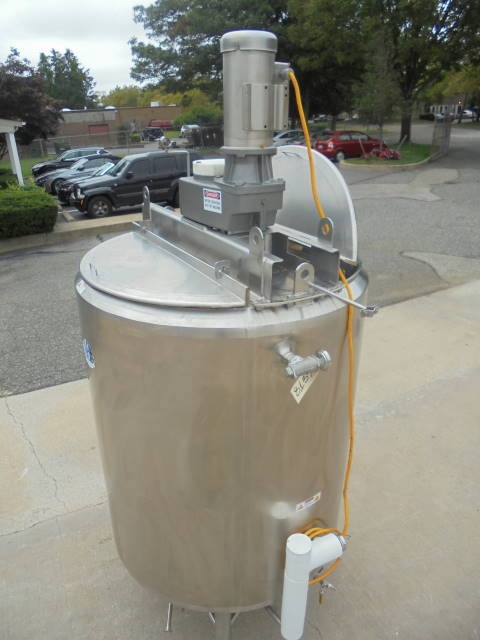

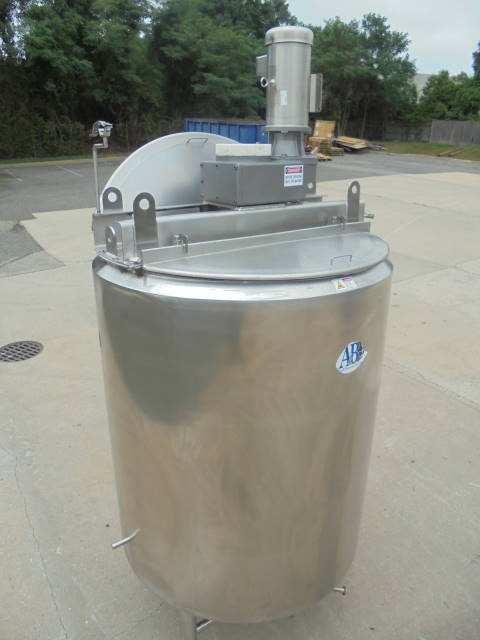

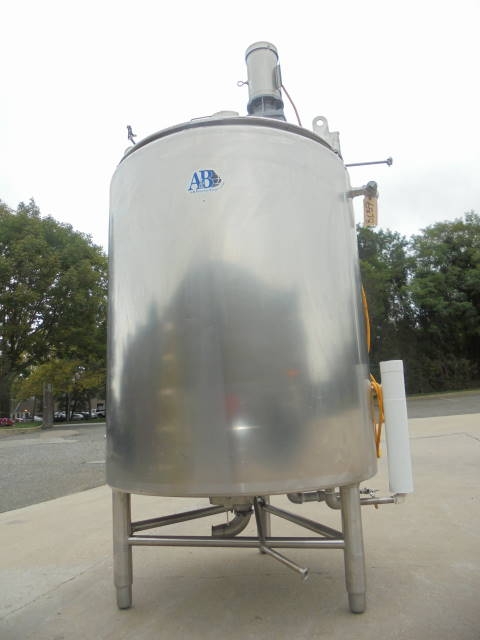

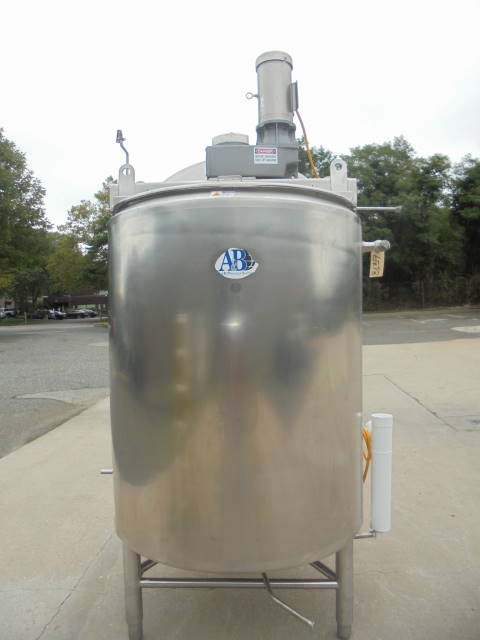

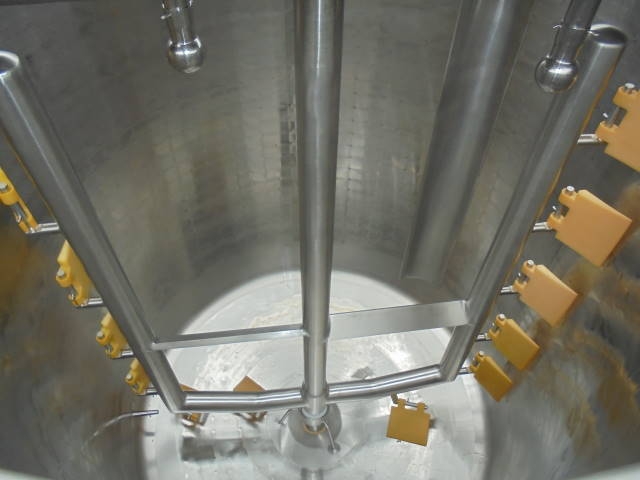

1-Used A & B Process Systems approx. 600 gallon Stainless Steel Sanitary Jacketed Vertical Mixing Tank/Kettle, S/N 50657301. Shell and head construction is type 316L Stainless Steel. Dimensions approx. 51 in. diameter X 61 in. straight side plus dished bottom head.  With heavy duty scrape surface agitation for both sides and bottom of vessel agitation.  Driven by 5 HP 3/60/208-230-460 volt stainless steel “wash down” motor.  Vessel is jacketed for 100 PSI @ 338 degrees F, National Board # 563, Code Stamped.  Interior has stationery baffle and dual CIP spray balls.  Dished bottom has approx. 4 in. diameter center outlet with flush bottom pneumatic valve which terminates in approx. 3 in. diameter tri-clamp fitting.  Mounted on approx. 23 in. high stainless steel legs, Tank has hinged lid.  (Stock #8139)

Specifications

  • Capacity/Model: 600 Gallon
  • Brand: A & B PROCESS SYSTEMS
  • Stock #: 8139
