65 Liter Walker Jacketed Sanitary Pressure Vessel, 316l Stainless Steel

Add to Favorites

Description

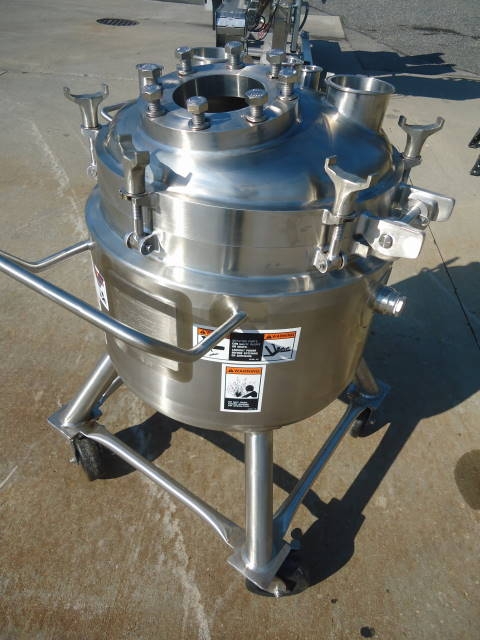

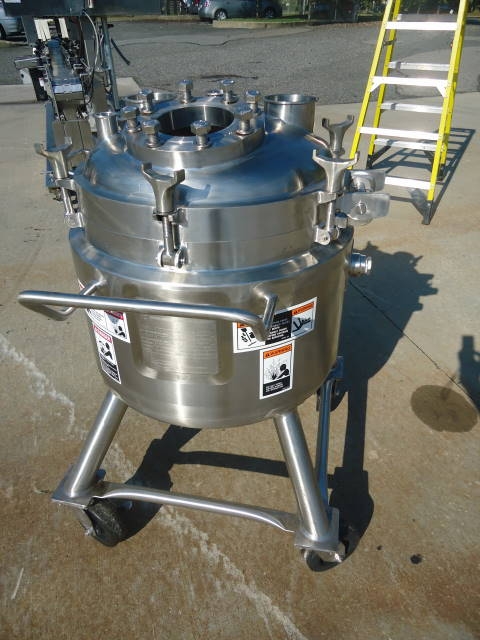

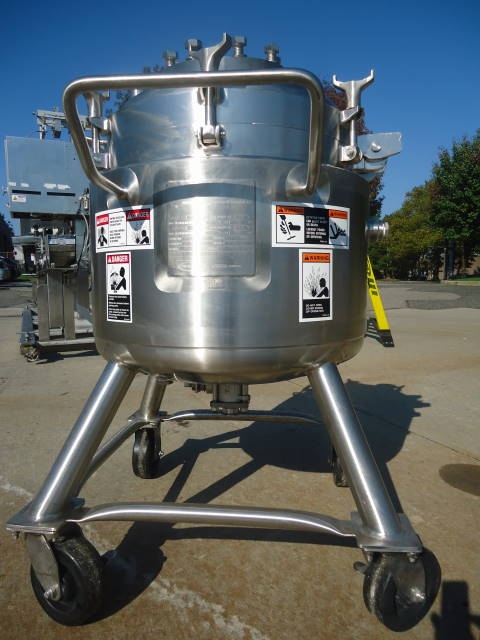

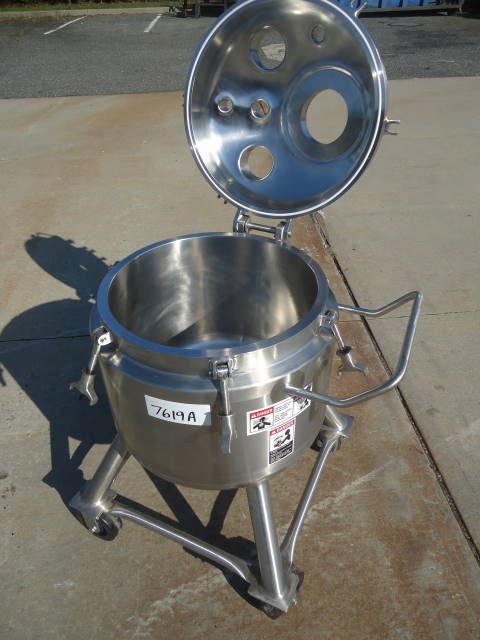

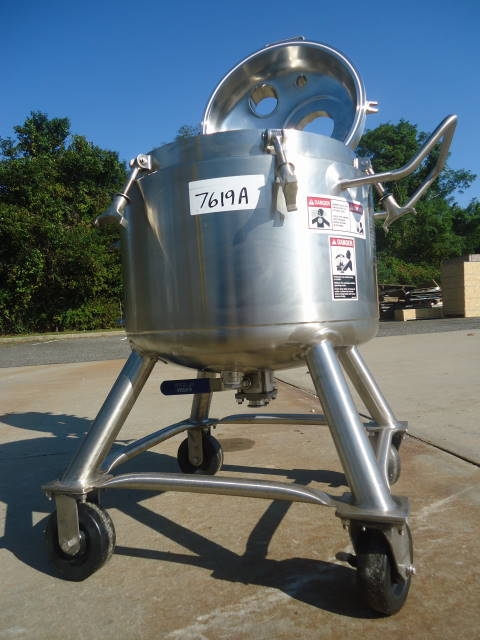

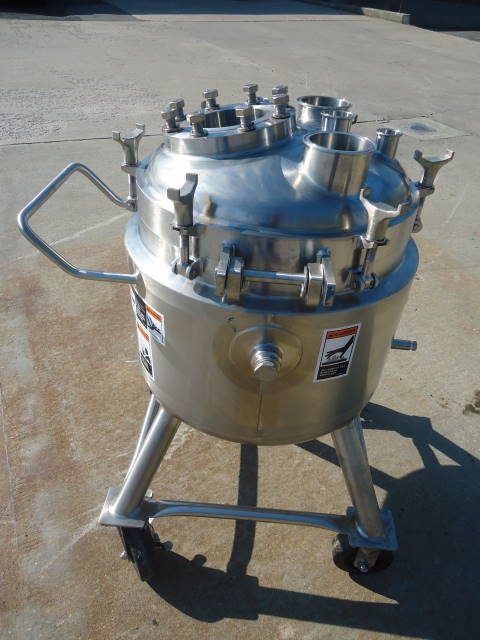

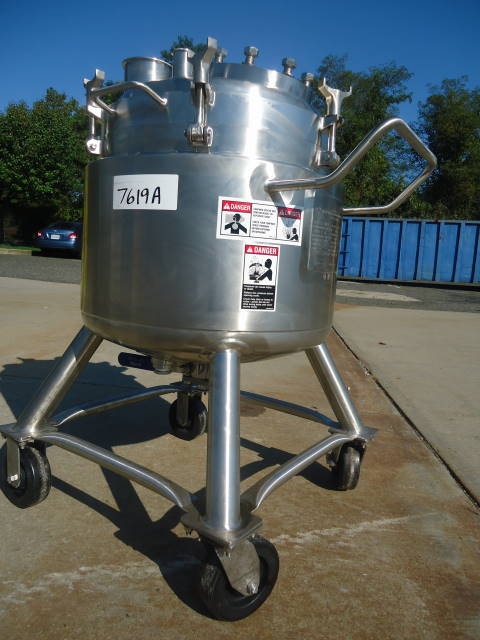

1-USED WALKER 65 LITER (APPROX. 16 GALLON) TYPE 316L STAINLESS STEEL SANITARY JACKETED PRESSURE VESSEL, S/N SPG-20285.  JACKET RATED 50 PSI @300 DEGREES F AND INTERNAL PRESSURE RATING IS 50/-15 PSI @ 300 DEGREES F, NATIONAL BOARD #4592, CODE STAMPED.  VESSEL INTERNAL DIMENSIONS APPROX. 21 IN. DIAMETER X 14 IN. ON THE STRAIGHT SIDE PLUS DISHED BOTTOM HEAD AND DISHED TOP HEAD WITH QUICK OPENING SWING BOLTS.  ON LEGS WITH CASTERS, VESSEL HAS APPROX. 1-1/2 I N. CENTER BOTTOM DISCHARGE WITH  HAND OPERATED VALVE.   TOP OPENINGS INCLUDE TWO (2) APPROX. 4 IN. DIAMETER, TWO (2) 1-1/2 IN. DIAMETER AND ONE (1) 2 IN. DIAMETER TRI-CLAMP OPENINGS, AS WELL AS APPROX. 10 IN. DIAMETER OFF CENTER FLANGED OPENING FOR MOUNTING TO AGITATOR (AGITATOR NOT INCLUDED).  (STOCK # 7619A)

Specifications

  • Capacity/Model: 65 LITER
  • Brand: WALKER
  • Stock #: 7619A
