11 Gallon Cherry Burrel 316 Stainless Steel Jacketed Pressurized Kettle/Reactor, Lift Out Agitation

Add to Favorites

Description

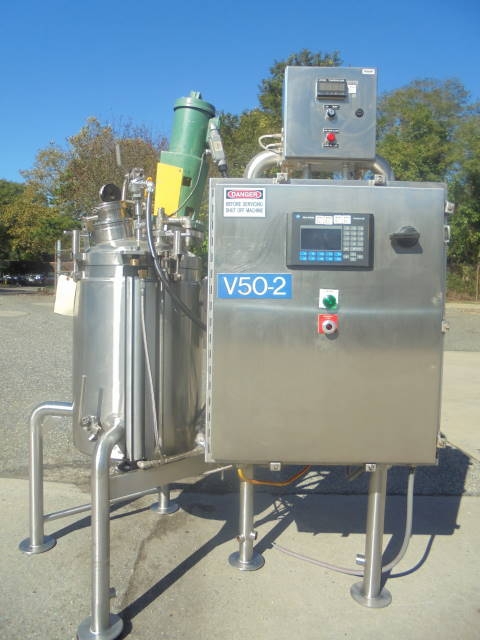

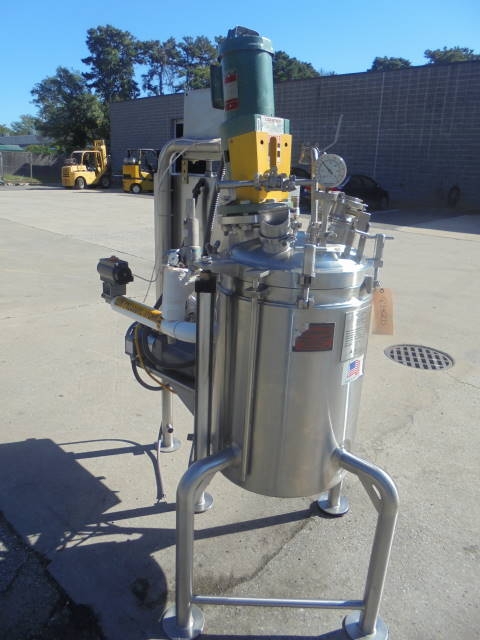

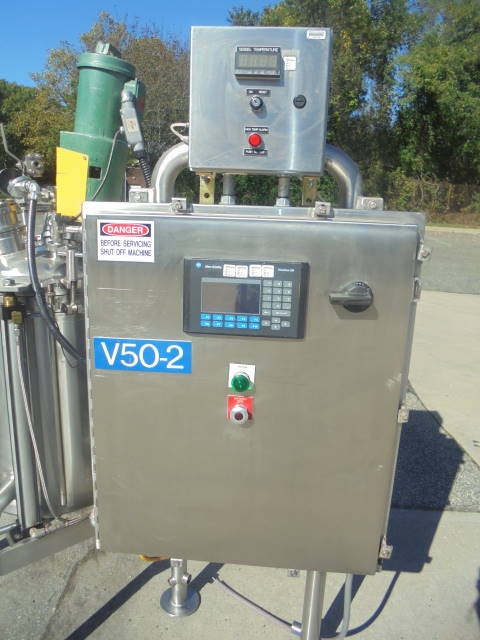

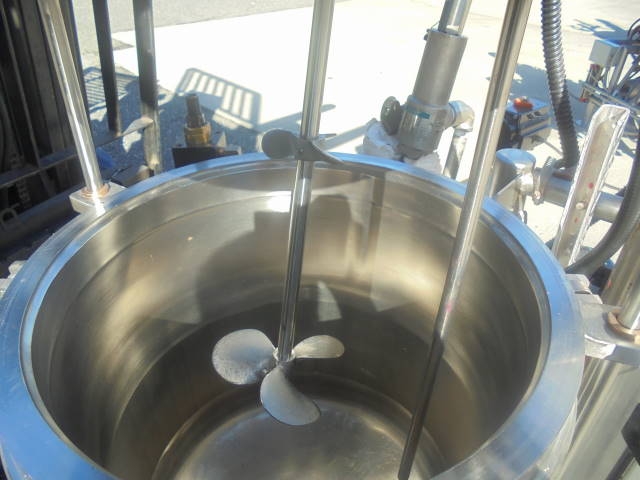

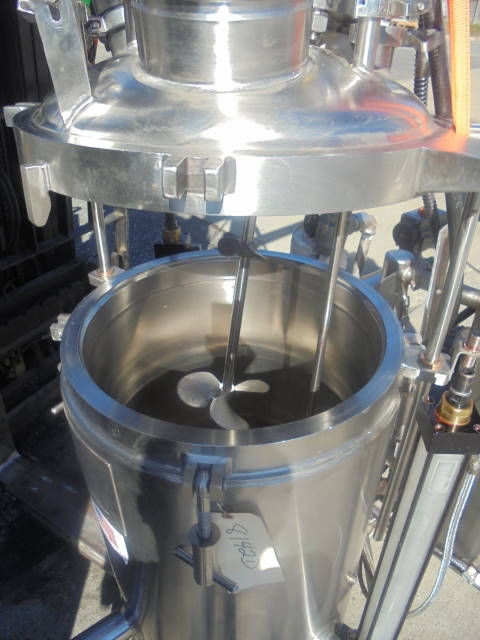

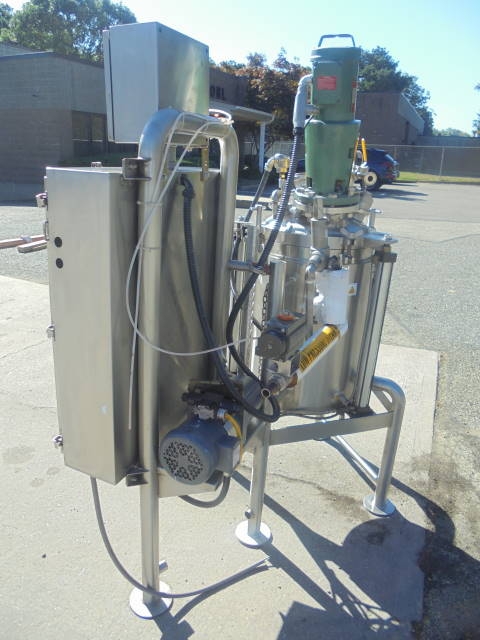

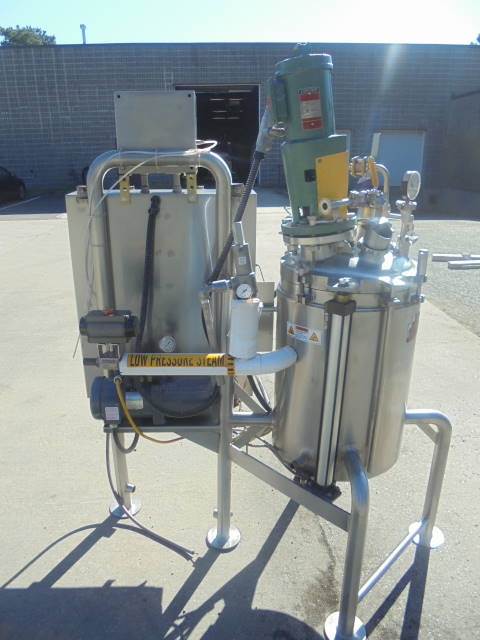

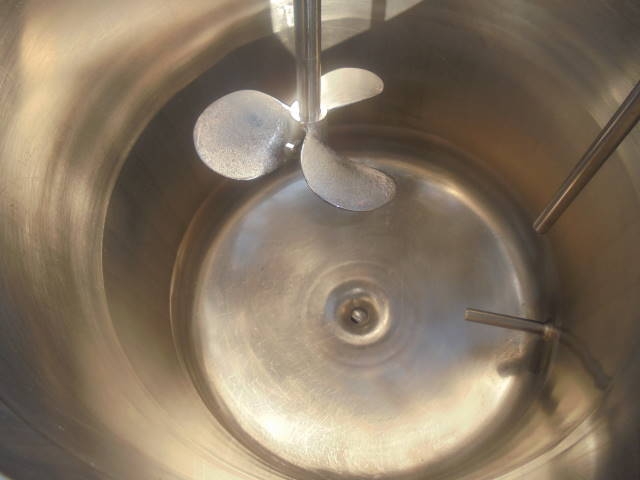

1-Used Cherry Burrell 11 Gallon 316 Stainless Steel Jacketed Pressurized Mix Kettle/Reactor, S/N E-087-95.  Interior dimensions approx. 20 in. diameter X 29 in. deep plus dished bolted top head.  Rated maximum internal pressure 25 PSI @ 350 degrees F, maximum external pressure 15 PSI @ 350 degrees F and jacket rated 100 PSI @ 350 degrees F., National Board # 4358, Code Stamped.  Equipped with twin propeller agitation driven by Lightnin XDC .43 HP 3 phase, 50/60 cycle, 208-220-440 volt motor.  With stainless steel control panel with Allen Bradley “Panelview 550” Controller.  Vessel has Thermowell with separate digital temperature read out panel.  With hydraulic cylinder with Delta Power 1 HP hydraulic motor for automatic lift out of agitation assembly.  On stainless steel legs, Vessel has assortment of top inlets and center bottom discharge outlet.  (Stock # 8142D)

Specifications

  • Capacity/Model: 11 Gallon
  • Brand: CHERRY BURRELL
  • Stock #: 8142D
