350 Gallon Stainless Closed Top Vertical Mix Tank, 5HP, XP

Add to Favorites

Description

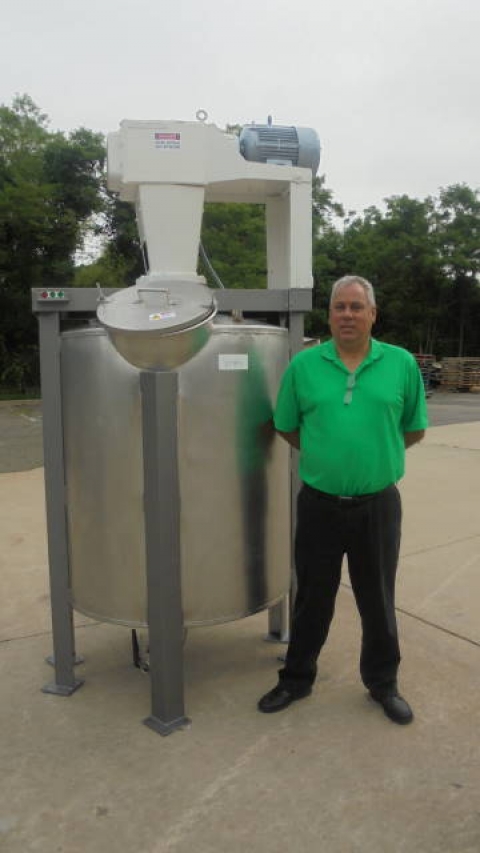

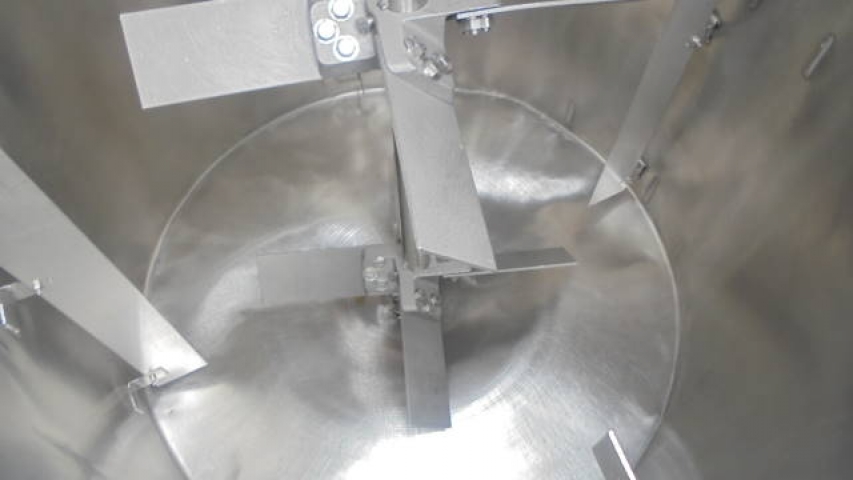

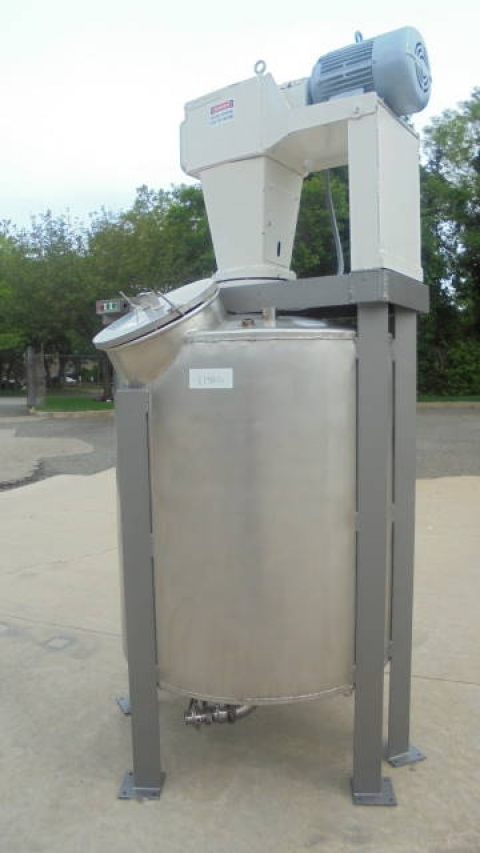

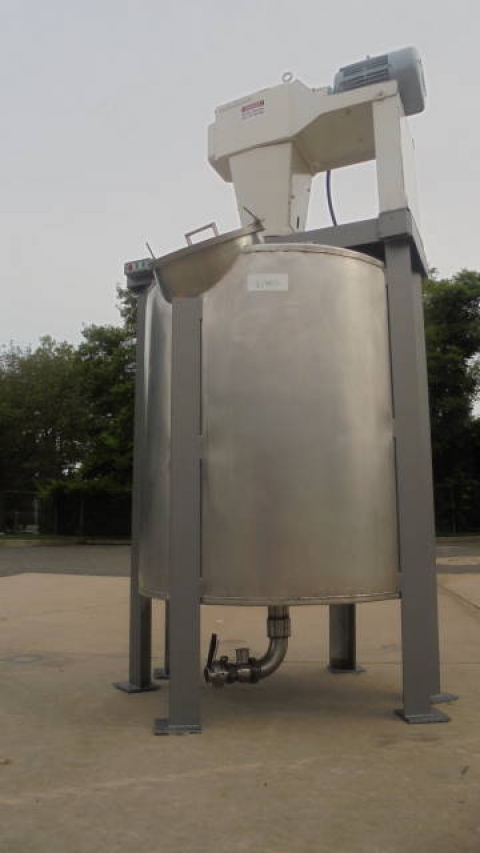

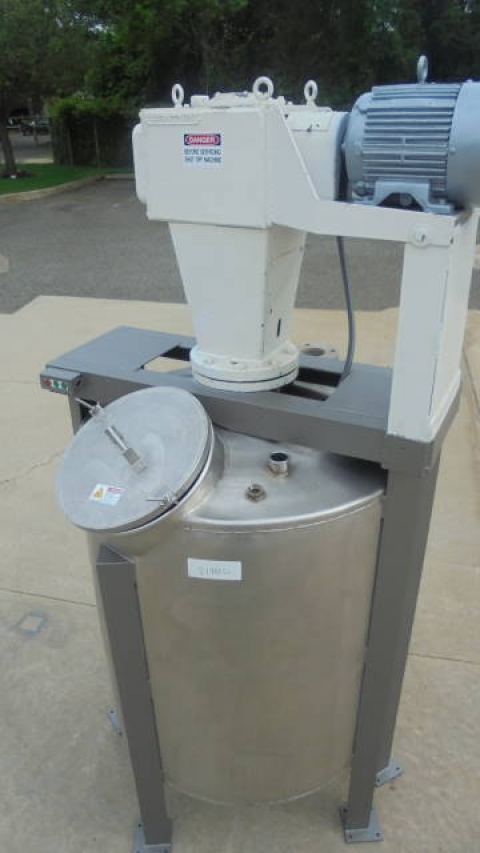

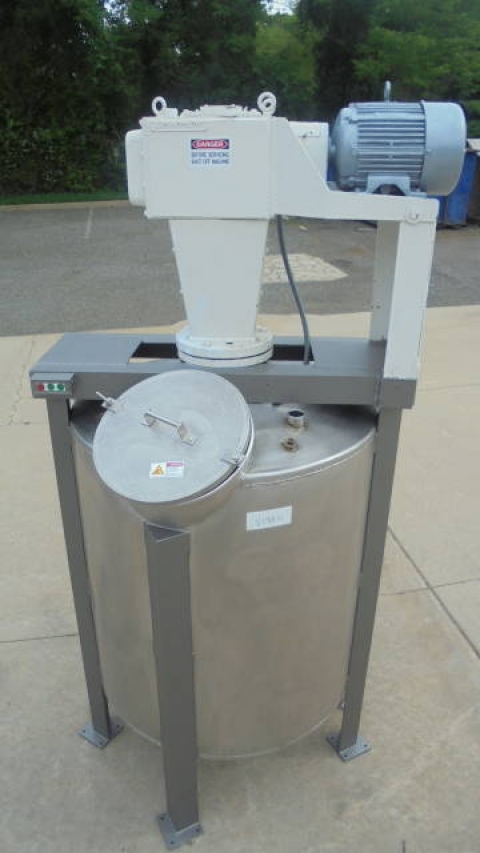

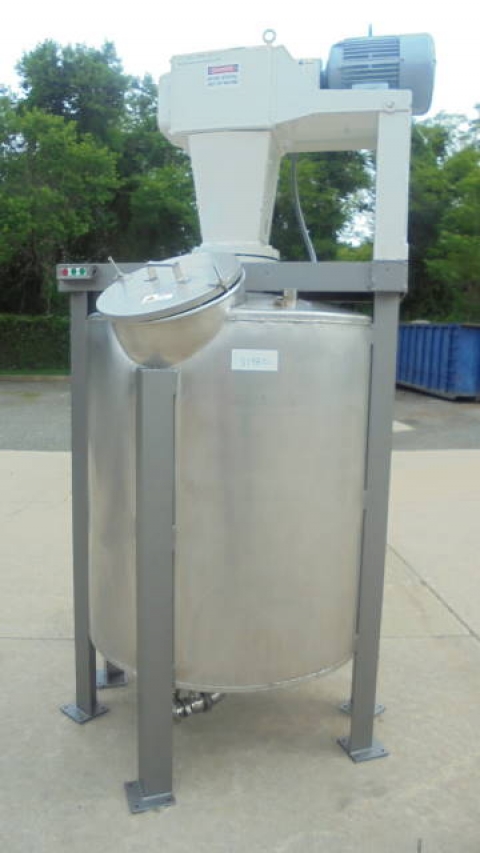

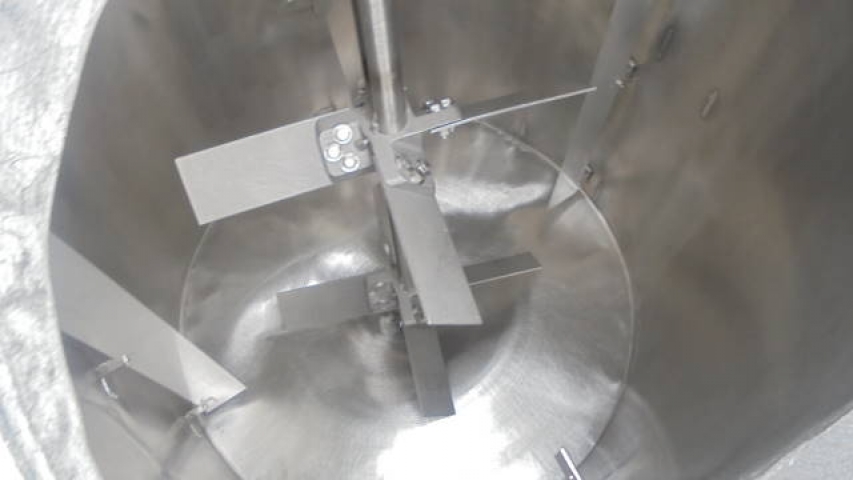

1-Used Approx. 350 gallon Stainless Steel Vertical Closed Mixing Tank.  Dimensions approx. 48 In. diameter X 48 In. deep, plus slight dished bottom.   On legs, tank has approx. 18 In. diameter off-center top manway with lid, as well as assorted smaller inlets.  Equipped with two 26 In. Wide pitched bladed agitators, driven by top mounted Lightnin 5HP, 3/60/230 Volt explosion proof drive motor.  Interior also has two stationary baffles.  With approx. 4 In. diameter center bottom outlet with 90 degree elbow reduced down to approx. 2-1/2 In. diameter valve with tri-clamp fitting.  Last used in the pharmaceutical industry. (Stock #8198D)

Specifications

  • Capacity/Model: 350 Gallon
  • Stock #: 8198D
